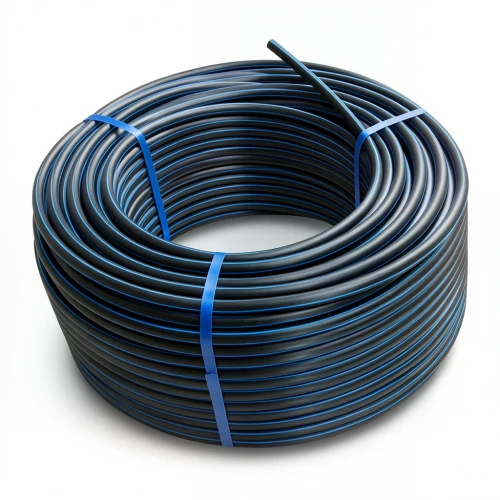

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 100] OD 20 mm SDR 11 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075, is a premium solution for water transportation networks across Kuwait. Made from high-density polyethylene (PE 100), it offers exceptional durability and performance, ensuring reliable service in both residential and commercial projects in Kuwait City, Hawalli, and Al Ahmadi.

Key Features

• Pressure rating: 12.5 bar (PN 12.5)
• Outside diameter: 20 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Wall thickness: 2 mm
• Material grade: PE 100 (MRS 10 MPa)
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Weight: 0.118 kg/m
• Color: Black with blue stripes
• Available in coils: 100, 200, 300 up to 1500 meters (for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Why Choose This HDPE Pipe?

Designed to withstand high water pressure, this pipe is ideal for water networks that experience demanding conditions. With a service life of over 50 years requiring minimal maintenance, it offers long-term value. Its resistance to UV radiation and chemical corrosion (pH range 2-12) makes it suitable for Kuwait's extreme temperatures and soil conditions. Additionally, the flexibility of the pipe and its welded joints provide excellent earthquake resistance, ensuring uninterrupted water supply even in seismic events.

Whether for potable water distribution, irrigation, or industrial applications, this HDPE coil pipe delivers superior performance and ease of installation, making it a trusted choice for contractors and engineers throughout Kuwait.
