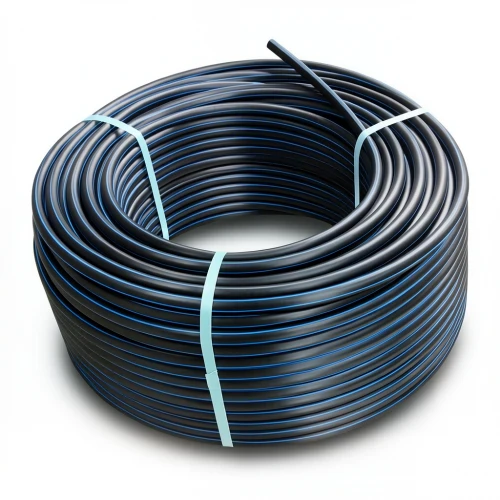

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 100] OD 160 mm SDR 11 Color Black with Blue Stripes | Almona Factory

These HDPE coil pipes, manufactured by Almona Factory in accordance with DIN 8074/8075, are engineered for efficient and durable water transportation. Made from high-density polyethylene (PE 100), they deliver outstanding performance in demanding conditions, making them a preferred choice for water networks across Kuwait, from residential developments in Hawalli to large-scale infrastructure projects in Al Ahmadi.

Key Features

• Pressure rating: 12.5 bar (PN 12.5)
• Outer diameter: 160 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Wall thickness: 14.6 mm
• Minimum required strength (MRS): 10 MPa
• Design safety factor: C = 1.6 (σs = 6.25 MPa)
• Weight: 6.74 kg/m
• Color: Black with blue stripes
• Length: Coils of 100, 200, or 300 meters (up to 1500 m for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Applications in Kuwait

Ideal for potable water supply lines, irrigation systems, and industrial fluid transfer, these pipes withstand high pressures and provide a maintenance-free service life of up to 50 years. Their flexibility and resistance to seismic activity make them suitable for Kuwait's variable ground conditions, while their UV resistance ensures long-term performance under the intense Kuwaiti sun. Additionally, they resist chemical corrosion across a pH range of 2 to 12, ensuring reliability in diverse environments.
