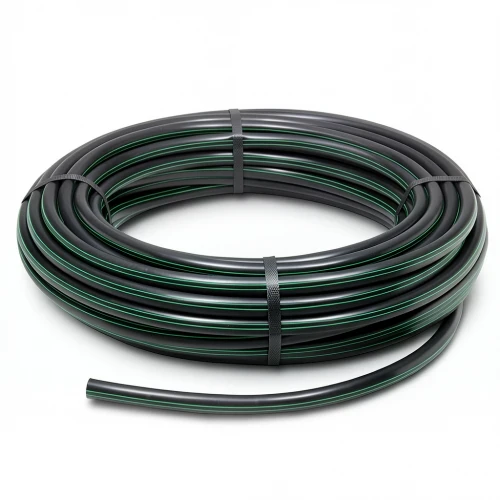

HDPE Plastic Coil Pipe PN 10 Bar [PE 80] OD 40 mm SDR 13.6 Color Black with Green Stripes | Almona Factory
(3 Product Views)
High-density polyethylene (HDPE) coil pipe from Al Mona Factory, rated PN 10 bar (PE 80), with a 40 mm outer diameter and SDR 13.6. Black with green stripes, this durable pipe is ideal for water networks in Kuwait.
in stock
Product description
This HDPE (high-density polyethylene) coil pipe, manufactured by Al Mona Factory in accordance with DIN 8074/8075, is the reliable choice for water transportation networks across Kuwait. Its advanced material properties ensure long-lasting performance, even under the demanding conditions of the region.
Key Features
- High pressure resistance: Rated for 10 bar, suitable for high-pressure water systems.
- Long service life: Up to 50 years of maintenance-free operation.
- UV resistant: Withstands prolonged exposure to Kuwait's intense sunlight.
- Earthquake resistant: Flexible pipe and welded joints absorb seismic shocks.
- Chemical resistant: Handles a wide pH range (2 to 12) without corrosion.
- Easy installation: Coil format allows for trenchless laying, reducing labor and time.
Technical Specifications
- Outside diameter: 40 mm
- Standard dimension ratio (SDR): 13.6
- Pipe series (S): 6.3
- Material grade: PE 80
- Pressure rating: 10 bar
- Wall thickness: 3 mm
- Minimum Required Strength (MRS): 8 MPa
- Weight: 0.356 kg/m
- Design safety factor: C = 1.25
- Color: Black with green stripes
- Length: Available in 100-meter coils (for sizes 40 mm to 160 mm)
Applications in Kuwait
Ideal for potable water distribution, irrigation systems, and industrial fluid transport in Kuwait City, Hawalli, and Al Ahmadi. Its durability and resistance to harsh weather make it a dependable choice for both residential and commercial projects.
