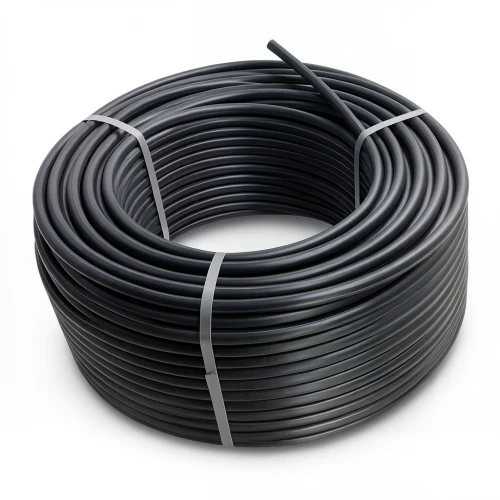

HDPE Plastic Coil Pipe PN 10 Bar [PE 80] OD 32 mm SDR 13.6 Color Black | Almona Factory

These HDPE pipe coils, manufactured by Al-Mona Factory in accordance with ISO 4427-2, are engineered for reliable water transportation networks. Made from high-density polyethylene (PE 80), they offer superior strength, durability, and resistance to high temperatures, pressure, and corrosion, ensuring long-lasting performance in Kuwait's demanding environment.

With a 32 mm outer diameter, SDR 13.6, and a pressure rating of 10 bar, these coils are suitable for a wide range of applications, including potable water supply, irrigation, and industrial fluid transfer. The black color provides UV resistance, while the coil format allows for easy handling and installation, reducing the need for joints and fittings.

Key Features

• Material grade: PE 80
• Pressure rating: 10 bar (PN 10)
• Outer diameter: 32 mm
• Standard dimension ratio: SDR 13.6
• Wall thickness: 2.4 mm
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Color: Black
• Available in coil lengths: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm

Ideal for construction projects in Kuwait City, Hawalli, and Al Ahmadi, these HDPE pipes meet the high standards required for modern infrastructure, ensuring efficient water distribution and long-term reliability.
