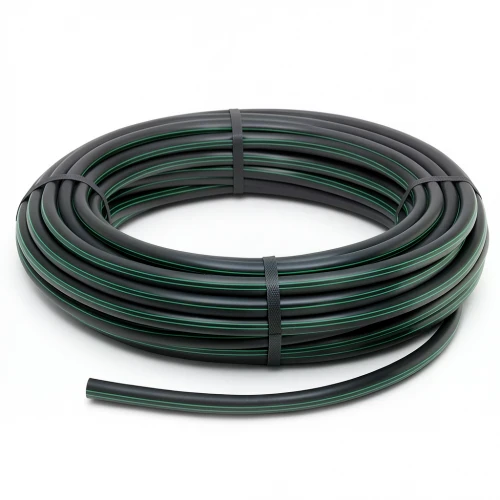

HDPE Plastic Coil Pipe PN 10 Bar [PE 80] OD 125 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its high-density polyethylene (HDPE) coil pipes, engineered to meet the demanding standards of water transportation networks across Kuwait. Manufactured in compliance with DIN 8074/8075, these pipes offer exceptional durability and performance, making them a reliable choice for both potable water supply and irrigation systems in regions like Kuwait City, Hawalli, and Al Ahmadi.

The flexibility of these HDPE pipes allows for easy bending and installation, reducing the need for extensive soil excavation and minimizing project time. Their resistance to rust and corrosion ensures a long service life, with a maintenance-free expectancy of 50 years. Additionally, they withstand high water pressures, making them ideal for networks operating under elevated pressure conditions.

These pipes are built to endure Kuwait's harsh climate, providing superior protection against UV radiation and seismic activity. Their chemical resistance covers a pH range of 2 to 12, ensuring safe transport of various fluids. Available in coil lengths from 100 to 1500 meters (for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm, they cater to diverse project requirements.

Key Specifications

• Outside diameter: 125 mm
• Standard dimension ratio: SDR 13.6
• Pipe series (S): 6.3
• Material grade: PE80
• Pressure rating: 10 bar
• Wall thickness: 9.2 mm
• Minimum Required Strength (MRS): 8 MPa
• Material weight: 3.37 kg/m
• Design safety factor: C=1.25
• Color: Black with green stripes
