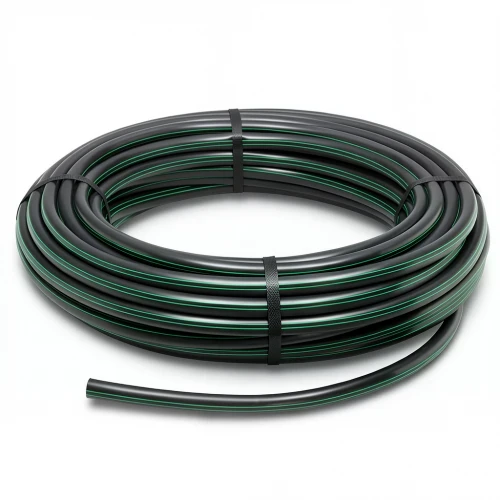

HDPE Plastic Coil Pipe PN 10 Bar [PE 63] OD 75 mm SDR 11 Color Black with Green Stripes | Almona Factory

These HDPE coil pipes from Al Mona Factory are engineered for reliable water transportation across Kuwait's demanding environments. Manufactured to DIN 8074/8075 standards, they combine high-density polyethylene's inherent strength with exceptional flexibility, ensuring long-term performance in both residential and commercial projects.

Key Features

• Pressure rating: 10 bar (PN 10)
• Outside diameter: 75 mm
• Standard dimension ratio: SDR 11
• Material grade: PE 63 with Minimum Required Strength (MRS) of 6.3 MPa
• Wall thickness: 6.8 mm
• Weight: 1.47 kg/m
• Design safety factor: C=1.25 (σs = 5.04 MPa)
• Color: Black with green stripes
• Length: Available in coils of 100 meters for sizes 40 mm to 160 mm

Durability and Performance

These pipes offer a maintenance-free service life of 50 years, withstand high water pressure, and resist UV radiation for prolonged exposure—critical for Kuwait's intense sunlight. They also provide excellent resistance to chemical corrosion (pH range 2–12) and are highly flexible, making them resilient to seismic activity and ground movement.

Applications in Kuwait

Ideal for water supply networks, irrigation systems, and industrial fluid transport across Kuwait City, Hawalli, and Al Ahmadi. Their lightweight nature simplifies handling and installation, reducing labor costs and project timelines.
