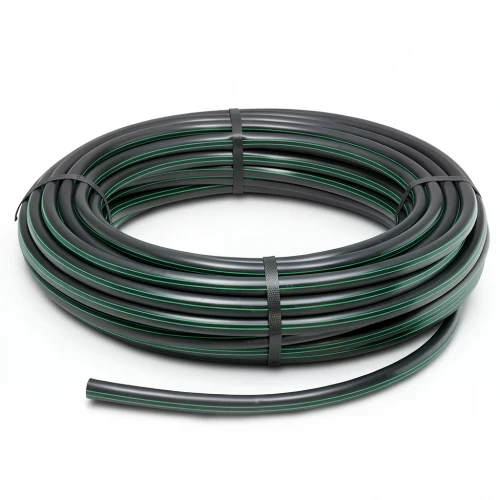

HDPE Plastic Coil Pipe PN 10 Bar [PE 63] OD 63 mm SDR 11 Color Black with Green Stripes | Almona Factory

This HDPE (High-Density Polyethylene) coil pipe, produced by Almona Factory in accordance with DIN 8074/8075, is an excellent choice for water distribution networks across Kuwait. Its lightweight nature simplifies transport and installation, especially in projects across Kuwait City, Hawalli, and Al Ahmadi, where efficiency and reliability are key.

Engineered to handle high water pressure, this pipe ensures a maintenance-free service life of up to 50 years, making it a cost-effective solution for both temporary and permanent installations. It offers superior resistance to UV radiation, chemical corrosion (pH range 2-12), and even earthquakes, thanks to its flexibility and robust welded joints.

Key Features & Specifications

• Outside diameter: 63 mm
• Pressure rating: 10 bar (PN 10)
• Standard Dimension Ratio (SDR): 11
• Material grade: PE 63
• Pipe Series (S): 5
• Wall thickness: 5.8 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Material weight: 1.05 kg/m
• Design safety factor: C=1.25, σs = 5.04 MPa
• Color: Black with green stripes
• Length: Available in coils of 100, 200, 300 meters (up to 1500 m for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Ideal for potable water lines, irrigation systems, and industrial applications, this HDPE pipe meets the demands of Kuwait's harsh climate and rigorous building standards. Choose Almona for quality you can trust.
