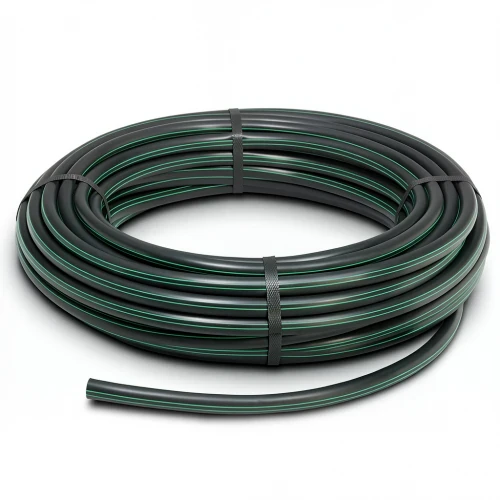

HDPE Plastic Coil Pipe PN 10 Bar [PE 63] OD 125 mm SDR 11 Color Black with Green Stripes | Almona Factory

These HDPE coil pipes from Al Mona Factory are manufactured to DIN 8074/8075 standards, delivering reliable performance for water transportation networks across Kuwait. Crafted from high-density polyethylene (PE 63), they combine strength with flexibility, making them a trusted choice for infrastructure projects in Kuwait City, Hawalli, and Al Ahmadi.

Designed to handle high water pressure, these pipes are ideal for pressurized water systems. With a design life of 50 years requiring minimal maintenance, they offer long-term value for municipal and industrial applications. Their resistance to UV radiation and chemical corrosion (pH 2–12) ensures durability in Kuwait's harsh climate and demanding environments.

Key features include:

• Outside diameter: 125 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 63
• Pressure rating: 10 bar
• Wall thickness: 11.4 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 4.08 kg/m
• Design safety factor: C=1.25
• Design stress (σs): 5.04 MPa
• Color: Black with green stripes
• Available in coils: 100, 200, 300 meters up to 1500 meters (sizes 16 mm to 32 mm); 100-meter coils (sizes 40 mm to 160 mm)

These pipes are also resistant to seismic activity due to their high flexibility and strong welded joints, ensuring reliable performance even under challenging conditions. Suitable for water supply, irrigation, and industrial fluid transport, they meet the needs of Kuwait's growing infrastructure.
