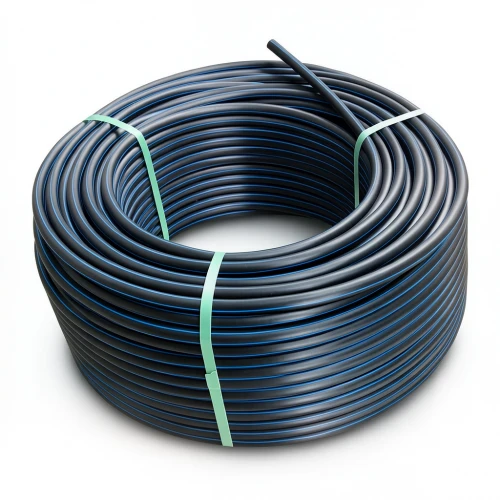

HDPE Plastic Coil Pipe Nominal Pressure 9.9 Bar [PE 100] OD 32 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory

Almona Factory presents HDPE coil pipes, engineered for reliable water transportation in Kuwait's demanding environment. Manufactured to DIN 8074/8075 standards, these pipes combine high-density polyethylene (PE 100) with a robust design to deliver long-lasting performance.

These pipes are built to withstand high water pressure, making them ideal for municipal and industrial water networks across Kuwait City, Hawalli, and Al Ahmadi. With a service life of 50 years and minimal maintenance, they offer a cost-effective solution for both new installations and upgrades.

Key Features

• Outside diameter: 32 mm
• Standard dimension ratio (SDR): 13.6
• Pipe series (S): 6.3
• Material grade: PE 100
• Nominal pressure: 9.9 bar
• Wall thickness: 2.4 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 0.235 kg/m
• Design safety factor: C = 1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Length: Coils from 100 m to 1500 m (sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Applications in Kuwait

Ideal for potable water supply, irrigation, and industrial fluid transfer, these pipes resist UV radiation and chemical corrosion (pH 2–12), ensuring durability in Kuwait's harsh climate. Their flexibility also provides earthquake resistance, a valuable trait for infrastructure resilience.
