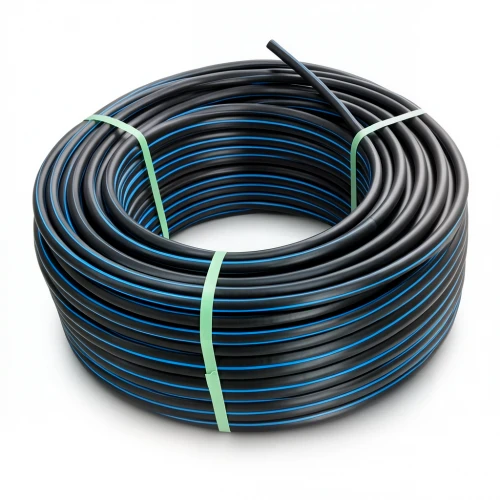

HDPE Plastic Coil Pipe Nominal Pressure 9.9 Bar [PE 100] OD 110 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory
(2 Product Views)
Product description
These HDPE coil pipes, manufactured by Almona Factory in accordance with DIN 8074/8075, are engineered for reliable water transportation networks across Kuwait. Made from high-density polyethylene (PE 100), they deliver outstanding durability and performance, even under the demanding conditions of the region.
With a nominal pressure of 9.9 bar and an outside diameter of 110 mm, these pipes handle high water pressures with ease, making them a dependable choice for municipal and industrial water supply systems. Their exceptional flexibility and welded joint strength provide superior resistance to seismic activity, a key consideration for Kuwait's infrastructure.
These pipes are built to last: they offer a maintenance-free service life of 50 years and withstand prolonged UV exposure, chemical corrosion (pH 2โ12), and external mechanical stress. Available in coil lengths from 100 to 1500 meters (depending on diameter), they suit a wide range of projects, from residential connections to large-scale distribution lines.
Key Features:
- Material: PE 100, SDR 13.6, Pipe Series S 6.3
- Outside diameter: 110 mm; wall thickness: 8.1 mm
- Pressure rating: 9.9 bar; MRS: 10 MPa; design safety factor C=1.6
- Weight: 2.64 kg/m; color: black with blue stripes
- Complies with DIN 8074/8075 standards
- 50-year maintenance-free lifespan
- Resistant to UV, chemicals, and earthquakes
- Available in coil lengths: 100 m (for 40โ160 mm sizes); longer coils for smaller diameters
