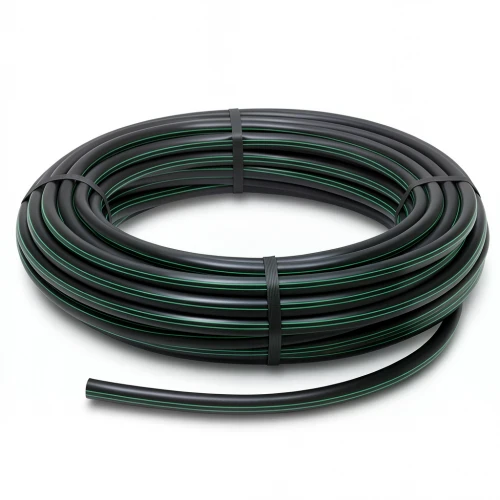

HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 80] OD 50 mm SDR 22 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its premium HDPE (high-density polyethylene) coil pipes, engineered for reliable water transportation networks across Kuwait. Manufactured in accordance with DIN 8074/8075 standards, these pipes deliver exceptional durability and performance, making them a preferred choice for infrastructure projects in Kuwait City, Hawalli, and Al Ahmadi.

These HDPE pipes are built to withstand high water pressure, ensuring a dependable supply in municipal and industrial applications. With a service life of 50 years requiring minimal maintenance, they offer a long-term solution for water distribution systems. Their flexibility and high weld joint integrity provide superior resistance to seismic activity, a valuable attribute for regions prone to ground movement.

The pipes exhibit excellent resistance to a wide range of chemicals (pH 2-12) and are highly tolerant to prolonged UV exposure, making them suitable for outdoor installations under Kuwait's intense sun. Available in various sizes and coil lengths, they cater to diverse project requirements.

Key Specifications:

• Outside Diameter: 50 mm
• Standard Dimension Ratio (SDR): 22
• Pipe Series (S): 10.5
• Material Grade: PE 80
• Nominal Pressure: 6 bar
• Wall Thickness: 2.3 mm
• Minimum Required Strength (MRS): 8 MPa
• Weight: 0.361 kg/m
• Design Safety Factor: C=1.25
• Color: Black with green stripes
• Length: Coils of 100, 200, 300 meters (up to 1500 m for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

These HDPE pipes are ideal for potable water supply, irrigation, and industrial fluid transfer. Their corrosion resistance and long lifespan make them a cost-effective and reliable choice for Kuwait's demanding environment.
