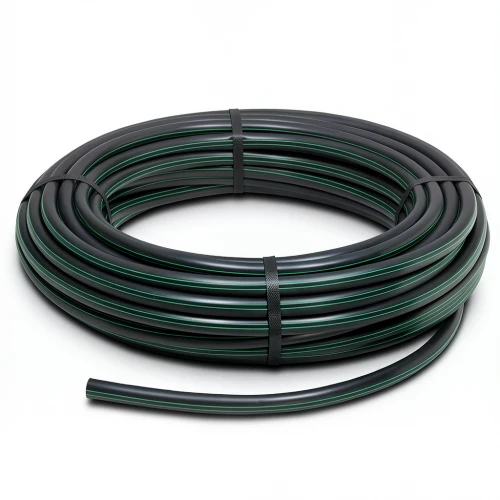

HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 63] Outside Diameter 90 mm SDR 17.6 Color Black with Green Stripes | Almona Factory

This HDPE (High-Density Polyethylene) coil pipe from Almona Factory is engineered for reliable water distribution networks, meeting DIN 8074/8075 standards. With a nominal pressure of 6 bar and an outside diameter of 90 mm, it delivers robust performance for both potable water and irrigation systems across Kuwait.

Thanks to its high-density polyethylene composition, this pipe offers exceptional resistance to corrosion, chemicals (pH 2-12), and UV exposure, making it ideal for Kuwait's harsh desert climate. Its flexibility ensures earthquake resistance, while the smooth interior minimizes friction and energy loss. Designed for a maintenance-free lifespan of 50 years, it reduces long-term operational costs.

Key Specifications

• Outside diameter: 90 mm
• Standard Dimension Ratio (SDR): 17.6
• Pipe Series (S): 8.3
• Material grade: PE 63
• Pressure rating: 6 bar
• Wall thickness: 5.1 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Weight: 1.39 kg/m
• Design safety factor: C=1.25
• Design stress (σs): 5.04 MPa
• Color: Black with green stripes
• Available in coils: 100m, 200m, 300m up to 1500m (sizes 16mm-32mm); 100m coils for sizes 40mm-160mm

Whether for municipal water projects in Kuwait City, residential developments in Hawalli, or agricultural schemes in Al Ahmadi, this HDPE pipe delivers dependable service. Its long coil lengths reduce the need for joints, speeding up installation and enhancing system integrity.
