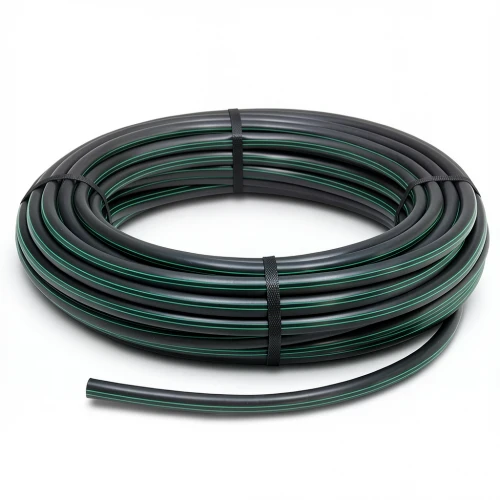

HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 63] OD 50 mm SDR 17.6 Color Black with Green Stripes | Almona Factory

Almona Factory presents this HDPE coil pipe, engineered to DIN 8074/8075 standards, offering a robust solution for water distribution networks across Kuwait. Made from high-density polyethylene, this pipe delivers outstanding durability and performance, ensuring efficient liquid transport even under high pressure—ideal for the demanding conditions of Kuwait's infrastructure projects.

With a service life of up to 50 years without maintenance, this pipe reduces long-term operational costs. Its flexibility provides excellent resistance to seismic activity, a valuable trait in a region prone to occasional tremors. The pipe also withstands prolonged UV exposure and resists chemical corrosion across a pH range of 2 to 12, making it suitable for various industrial and municipal applications.

Key Specifications

• Outside diameter: 50 mm
• Standard dimension ratio (SDR): 17.6
• Pipe series (S): 8.3
• Material grade: PE 63
• Nominal pressure: 6 bar
• Wall thickness: 2.9 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 0.440 kg/m
• Design safety factor: C=1.25, σs=5.04 MPa
• Color: Black with green stripes
• Length: Coils from 100 to 1500 meters (sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

This pipe is perfect for potable water lines, irrigation systems, and industrial fluid transfer across Kuwait City, Hawalli, and Al Ahmadi. Its lightweight coil format simplifies transportation and installation, saving time and effort on site.
