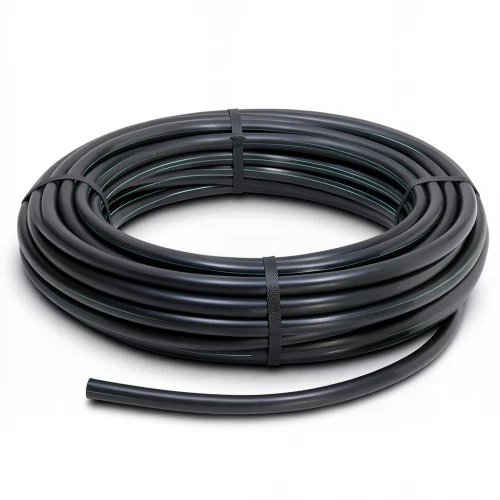

HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 63] OD 110 mm SDR 17.6 Color Black | Almona Factory
(30 Product Views)
High-density polyethylene coil pipe for irrigation and high-pressure water networks, PE 63 grade, 6 bar, 110 mm OD, black, made by Al Mona Factory.
in stock
Product description
Reliable HDPE Coil Pipe for Demanding Water Networks
This HDPE (high-density polyethylene) coil pipe from Al Mona Factory is engineered for efficient and durable liquid transport, making it a top choice for irrigation systems and high-pressure water networks across Kuwait. With a nominal pressure of 6 bar and an outside diameter of 110 mm, it meets the rigorous demands of both residential and commercial projects in cities like Kuwait City, Hawalli, and Al Ahmadi.
Key Features & Benefits
- Long-lasting performance: Designed for a 50-year maintenance-free service life, reducing replacement and upkeep costs.
- Pressure resilience: Handles high water pressure with ease, ideal for networks subjected to stress.
- Superior protection: Resistant to external factors such as corrosion, chemicals, and soil conditions common in Kuwait's environment.
- Standards compliance: Manufactured according to DIN 8074/8075, ensuring quality and reliability.
- Flexible coil form: Available in coil lengths from 100 to 1500 meters (for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm, providing installation flexibility.
Technical Specifications
- Outside Diameter: 110 mm
- Wall Thickness: 6.3 mm
- Material Weight: 2.08 kg/m
- Standard Dimensional Ratio (SDR): 17.6
- Nominal Pressure: 6 bar
- Pipe Series (S): 8.3
- Material Grade: PE 63
- Color: Black
- Minimum Required Strength (MRS): 6.3 MPa
- Design Stress (σs): 5.04 MPa
- Design Safety Factor: C=1.25
