HDPE Plastic Coil Pipe Nominal Pressure 4.8 Bar [PE 80] Outside Diameter 125 mm Thickness 7.1 mm Color Yellow | Almona Factory

Our HDPE plastic coil pipes, manufactured by Al-Mona factory in compliance with ISO 4437, are the reliable choice for gas distribution networks across Kuwait. Crafted from high-density polyethylene (PE 80), these pipes deliver exceptional strength and longevity, resisting corrosion and rust even in the harsh desert climate and high humidity of coastal areas like Kuwait City and Al Ahmadi.

With a nominal pressure of 4.8 bar (SDR 17.6) and a robust 7.1 mm wall thickness, these 125 mm outside diameter coils ensure safe and efficient gas flow. The yellow color provides high visibility for easy identification during installation and maintenance, meeting international safety standards.

Key Features

• Material: High-density polyethylene (PE 80) for superior toughness
• Pressure rating: 4.8 bar (SDR 17.6) – suitable for low-pressure gas systems
• Dimensions: 125 mm outside diameter, 7.1 mm wall thickness
• Weight: 2.68 kg per meter – lightweight for easy handling
• Minimum Required Strength (MRS): 10 MPa, design stress 5 MPa, safety factor C=2
• Corrosion and rust resistant – no need for external coating

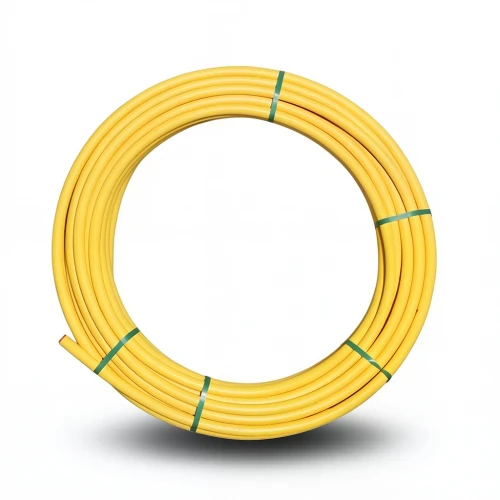

• Available in coils of 100 meters (for sizes 40 mm to 160 mm) and longer coils up to 1500 meters for smaller diameters

Applications in Kuwait

These pipes are ideal for gas supply networks in residential, commercial, and industrial projects throughout Kuwait, including Hawalli and Al Ahmadi. Their flexibility and coil form reduce the need for joints, minimizing leak points and speeding up installation in trenchless and open-cut methods.
