![HDPE Plastic Coil Pipe Nominal Pressure 4.8 Bar [PE 80] OD 90 mm Thickness 5.2 mm Color Yellow | Almona Factory](https://d3usa7hclic8la.cloudfront.net/447380/conversions/hdpe-plastic-coil-pipe-nominal-pressure-48-bar-pe-80-od-90-mm-thickness-52-mm-color-yellow-almona-factory-kw-size_500_500.webp)

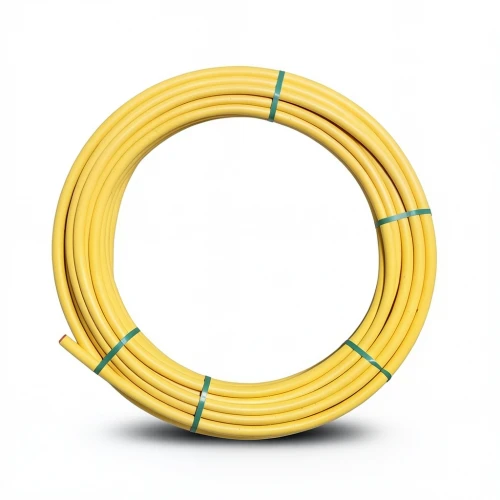

HDPE Plastic Coil Pipe Nominal Pressure 4.8 Bar [PE 80] OD 90 mm Thickness 5.2 mm Color Yellow | Almona Factory
(34 Product Views)
Almona PE80 HDPE coil pipes (90 mm OD, 4.8 bar) offer robust, corrosion-resistant solutions for Kuwait's industrial gas and water networks.
in stock
Product description
Engineered for the demanding conditions of Kuwait’s industrial zones in Al Ahmadi and Hawalli, these HDPE coil pipes from Almona Factory deliver superior flexibility and structural integrity. Manufactured to ISO4437 standards using high-density polyethylene (PE80), these pipes resist corrosion and withstand significant thermal and pressure stress, making them ideal for fuel delivery and gas supply networks.
Key Technical Specifications
- Outside Diameter: 90 mm
- Wall Thickness: 5.2 mm
- Nominal Pressure: 4.8 bar (SDR 17.6)
- Material Grade: PE 80
- Minimum Required Strength (MRS): 10 MPa
- Design Stress (σs): 5 MPa
- Design Safety Factor: C=2
- Material Weight: 1.40 kg/m
- Color: Yellow
- Coil Lengths: 100m to 1500m (varies by size)
The yellow coloration ensures immediate visual identification for gas applications, enhancing safety compliance on site. The coil format facilitates easy transport and rapid installation, reducing labor costs for B2B projects across Kuwait City and its surrounding industrial areas.
