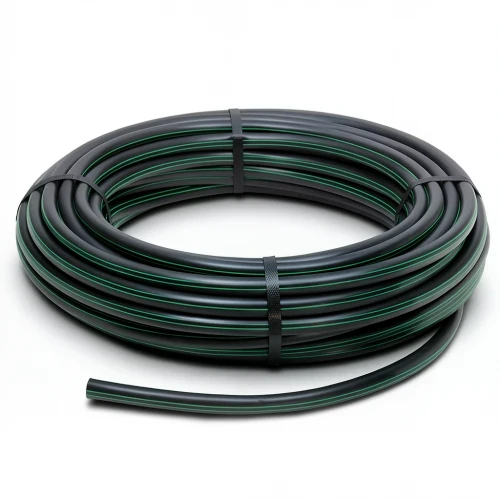

HDPE Plastic Coil Pipe Nominal Pressure 4 Bar [PE 80] OD 160 mm SDR 33 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its premium HDPE (high-density polyethylene) coil pipes, engineered to meet the rigorous demands of water transportation networks across Kuwait. Manufactured in accordance with DIN 8074/8075, these pipes offer a robust solution for both potable water and irrigation systems, ensuring long-term performance in Kuwait's challenging climate.

Key Features

• Superior Durability: Withstands high water pressure and provides a maintenance-free service life of 50 years.
• UV Resistance: Designed to endure prolonged exposure to sunlight, ideal for outdoor installations in Kuwait.
• Chemical Resistance: Resistant to a wide range of chemicals (pH 2–12), making it suitable for various industrial applications.
• Seismic Resilience: High flexibility of the pipe and welded joints ensures resistance to earthquakes, a valuable trait for infrastructure in the region.
• Corrosion-Free: Immune to corrosion, ensuring clean and safe water delivery.

Technical Specifications

• Outside Diameter: 160 mm
• Standard Dimension Ratio (SDR): 33
• Pipe Series (S): 16
• Material Grade: PE 80
• Nominal Pressure: 4 bar
• Wall Thickness: 4.9 mm
• Minimum Required Strength (MRS): 8 MPa
• Material Weight: 2.42 kg/m
• Design Safety Factor: C = 1.25
• Color: Black with green stripes
• Length: Available in coils of 100, 200, 300 meters (up to 1500 meters) for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm.

These HDPE pipes are the preferred choice for contractors and engineers in Kuwait City, Hawalli, and Al Ahmadi, offering reliable performance for municipal water supply, agricultural irrigation, and industrial fluid transport. With easy handling and installation, they reduce project timelines and ensure cost-effective operations over the long term.
