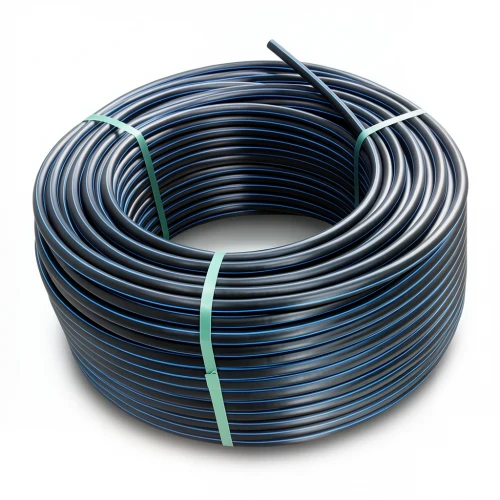

HDPE Plastic Coil Pipe Nominal Pressure 4 Bar [PE 100] OD 63 mm SDR 33 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe, manufactured by Al Mona Factory to DIN 8074/8075, delivers outstanding performance for water distribution networks across Kuwait. Its high-density polyethylene construction ensures exceptional durability, with a service life of 50 years without the need for maintenance.

Engineered to withstand high water pressures, this pipe is ideal for demanding applications in Kuwait City, Hawalli, and Al Ahmadi, where reliable water supply is essential. The pipe's flexibility and welded joint strength provide excellent resistance to seismic activity, while its UV stability ensures long-term performance under the intense Kuwaiti sun. Additionally, it resists chemical corrosion across a pH range of 2 to 12, making it suitable for various industrial fluids.

Key Specifications

• Outside Diameter: 63 mm
• Standard Dimension Ratio: SDR 33
• Pipe Series (S): 16
• Material Grade: PE 100
• Nominal Pressure: 4 bar
• Wall Thickness: 2 mm
• Minimum Required Strength (MRS): 10 MPa
• Weight: 0.403 kg/m
• Design Safety Factor: C=1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Available in coils of 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm
