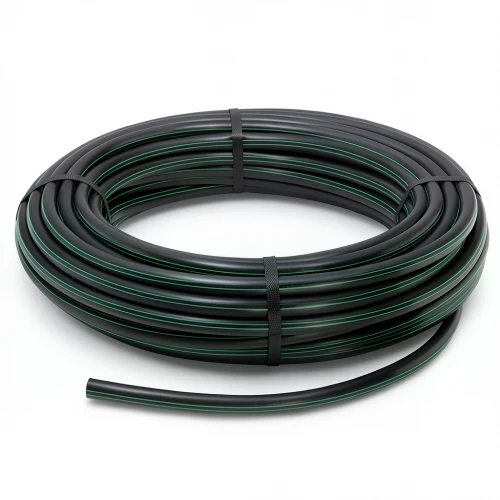

HDPE Plastic Coil Pipe Nominal Pressure 3.9 Bar [PE 63] OD 50 mm SDR 21 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents a premium HDPE coil pipe engineered for efficient water transportation, meeting the rigorous standards of Kuwait's infrastructure. Manufactured in compliance with DIN 8074/8075, this pipe delivers exceptional durability and performance, making it a trusted choice for residential, commercial, and industrial projects across Kuwait City, Hawalli, and Al Ahmadi.

With a nominal pressure of 3.9 bar and a 50 mm outer diameter, this PE 63 grade pipe offers reliable flow for various applications. Its SDR 21 rating ensures a balanced wall thickness, providing robustness without compromising flexibility. The pipe's high-density polyethylene construction grants it a maintenance-free service life of up to 50 years, reducing long-term operational costs.

Designed to withstand Kuwait's harsh climate, this HDPE pipe offers superior UV resistance, ensuring prolonged exposure to sunlight does not degrade its integrity. It also exhibits excellent resistance to chemical corrosion, handling fluids with a pH range of 2 to 12, and remains resilient against seismic activity due to its flexible joints and material elasticity.

Key Features

• Outside diameter: 50 mm
• Standard dimension ratio: SDR 21
• Pipe series (S): 10
• Material grade: PE 63
• Nominal pressure: 3.9 bar
• Wall thickness: 2.4 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 0.374 kg/m
• Design safety factor: C = 1.6
• Design stress (σs): 3.94 MPa
• Color: Black with green stripes
• Available in coils: 100, 200, 300 up to 1500 meters (for sizes 16 mm to 32 mm)
• 100-meter coils for sizes 40 mm to 160 mm

This HDPE coil pipe is easy to transport and install, making it a practical solution for contractors and utility companies in Kuwait. Its flexibility allows for quick deployment in trenchless installations and reduces the need for fittings, saving time and labor. Whether for potable water supply, irrigation systems, or industrial fluid transfer, this pipe delivers consistent performance and longevity.
