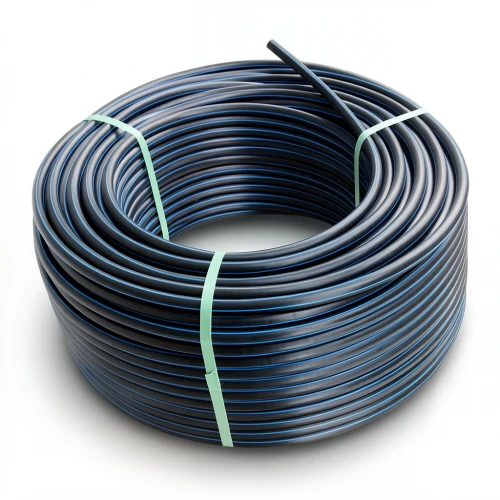

HDPE Plastic Coil Pipe Nominal Pressure 20 Bar [PE 100] Outside Diameter 75 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Almona Factory presents HDPE (high-density polyethylene) coil pipes, engineered for reliable performance in demanding water transportation systems. Manufactured in accordance with DIN 8074/8075, these pipes are the preferred choice for contractors and municipalities across Kuwait, from Kuwait City to Al Ahmadi.

Built to withstand high operating pressures, these pipes ensure a long service life with minimal maintenance—up to 50 years of trouble-free operation. Their exceptional flexibility and resistance to UV radiation and seismic activity make them suitable for Kuwait's harsh climate and ground conditions. Additionally, they resist chemical corrosion across a wide pH range (2 to 12), ensuring safe conveyance of water and other fluids.

Key Specifications:

• Outside Diameter: 75 mm
• Standard Dimension Ratio (SDR): 9
• Pipe Series (S): 4
• Material Grade: PE 100
• Nominal Pressure: 20 bar
• Wall Thickness: 8.4 mm
• Minimum Required Strength (MRS): 8 MPa
• Material Weight: 1.78 kg/m
• Design Safety Factor: C=1.25
• Color: Black with blue stripes
• Length: Available in coils of 100, 200, 300 meters (up to 1500 meters for smaller sizes); 100-meter coils for sizes 40 mm to 160 mm.

Ideal for potable water distribution, irrigation, and industrial applications, these HDPE pipes offer easy installation and transport compared to traditional piping. Their lightweight nature reduces handling costs, while their joint flexibility ensures leak-proof connections. Choose Almona for quality and performance in every project.
