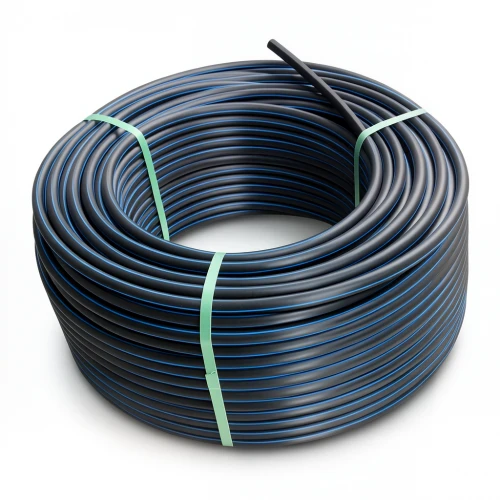

HDPE Plastic Coil Pipe Nominal Pressure 19.2 Bar [PE 100] OD 110 mm SDR 7.4 Color Black with Blue Stripes | Almona Factory

Almona Factory presents HDPE coil pipes engineered for reliable water distribution networks across Kuwait. Manufactured to DIN 8074/8075 standards, these pipes combine high-density polyethylene (PE 100) with a robust design to meet the demands of modern infrastructure in cities like Kuwait City, Hawalli, and Al Ahmadi.

Key Features

• Outside diameter: 110 mm
• Standard dimension ratio (SDR): 7.4
• Pipe series (S): 3.2
• Material grade: PE 100
• Nominal pressure: 19.2 bar
• Wall thickness: 15.1 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 4.54 kg/m
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m for sizes 16–32 mm; 100 m coils for sizes 40–160 mm

Durability and Performance

These pipes offer exceptional resistance to chemicals and UV radiation, ensuring longevity in Kuwait's harsh climate. With a 50-year maintenance-free lifespan, they minimize operational costs and downtime. Their flexibility provides high resistance to earthquakes and ground movement, making them ideal for underground installations.

Applications in Kuwait

Suitable for potable water supply, irrigation systems, and industrial fluid transfer, these pipes handle a wide pH range (2–12) and withstand high pressures, making them a versatile choice for residential, commercial, and municipal projects throughout Kuwait.
