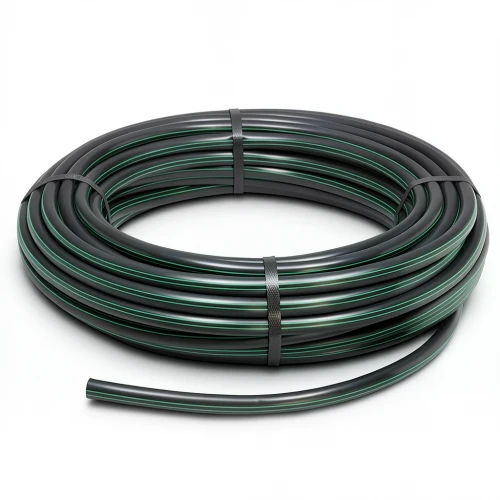

HDPE Plastic Coil Pipe Nominal Pressure 16 Bar [PE 80] OD 50 mm SDR 9 Color Black with Green Stripes | Almona Factory

Al Mona factory presents HDPE (high-density polyethylene) coil pipes, engineered to DIN 8074/8075, for reliable water transportation networks in Kuwait. These pipes are the optimal solution for efficient liquid conveyance, offering exceptional durability and performance under demanding conditions.

Designed to withstand high water pressure, these pipes are ideal for water networks across Kuwait, from residential projects in Hawalli to large-scale infrastructure in Al Ahmadi. With a 50-year maintenance-free lifespan, they provide long-term value and peace of mind. Their superior resistance to UV radiation ensures performance under the intense Kuwaiti sun, while their flexibility makes them highly resistant to earthquakes, a crucial feature for the region.

Additionally, HDPE pipes resist chemical corrosion, handling a wide pH range from 2 to 12, making them suitable for various industrial and municipal applications. Available in multiple sizes and coil lengths, these pipes combine quality and practicality for every project.

Key Specifications:

• Outside Diameter: 50 mm
• Standard Dimension Ratio (SDR): 9
• Pipe Series (S): 4
• Material Grade: PE 80
• Nominal Pressure: 16 bar
• Wall Thickness: 5.6 mm
• Minimum Required Strength (MRS): 8 MPa
• Material Weight: 0.788 kg/m
• Design Safety Factor: C = 1.25
• Color: Black with green stripes
• Length: Coils of 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm
