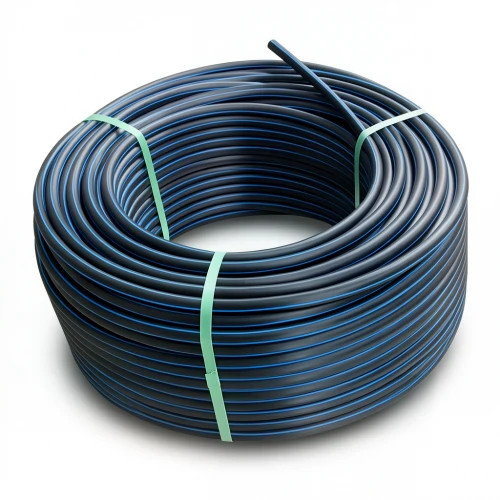

HDPE Plastic Coil Pipe Nominal Pressure 16 Bar [PE 100] Outside Diameter 25 mm SDR 11 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe from Al Mona Factory is engineered for reliable water transportation in Kuwait's demanding environment. Manufactured to DIN 8074/8075 standards, it combines high strength with exceptional durability.

Thanks to its PE100 grade material and SDR 11 rating, this pipe handles high water pressure with ease, making it a dependable choice for municipal networks, irrigation systems, and industrial applications across Kuwait City, Hawalli, and Al Ahmadi. Its resistance to UV radiation and chemical corrosion (pH 2–12) ensures long-term performance even under intense sun exposure.

Key Features

• Outside diameter: 25 mm
• Nominal pressure: 16 bar
• Material grade: PE100
• Standard dimension ratio: SDR 11
• Wall thickness: 2.3 mm
• Minimum required strength: 8 MPa
• Weight: 0.173 kg/m
• Design safety factor: C=1.25
• Color: Black with blue stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (sizes 16–32 mm); 100 m coils for sizes 40–160 mm
• 50-year maintenance-free service life
• Flexible and earthquake-resistant

This pipe is a smart investment for Kuwait's infrastructure, offering a cost-effective solution without compromising on quality or safety.
