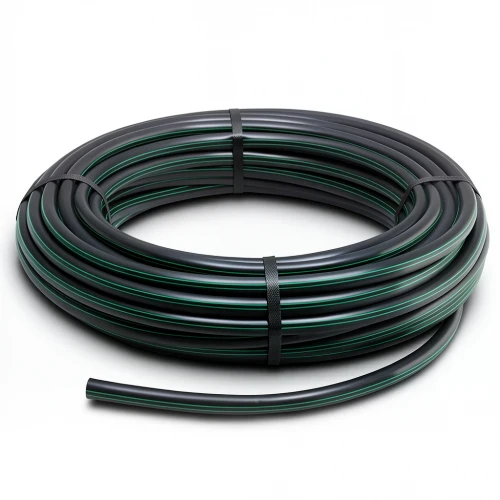

HDPE Plastic Coil Pipe Nominal Pressure 15.9 Bar [PE 63] OD 125 mm SDR 7.4 Color Black with Green Stripes | Almona Factory

This HDPE plastic coil pipe, produced by Almona Factory, is a reliable solution for water transportation networks across Kuwait. Manufactured according to DIN 8074/8075 standards, it delivers exceptional performance in demanding conditions, from the high groundwater pressure in coastal areas to the extreme heat of the desert climate.

The pipe is made from high-density polyethylene (PE 63) and features a nominal pressure rating of 15.9 bar, making it suitable for pressurized water systems. With a 50-year maintenance-free lifespan, it reduces long-term operational costs and ensures uninterrupted service for residential, commercial, and industrial projects in Kuwait City, Hawalli, and Al Ahmadi.

Key Features

• Outside diameter: 125 mm
• Standard dimension ratio (SDR): 7.4
• Pipe series (S): 3.2
• Material grade: PE 63
• Nominal pressure: 15.9 bar
• Wall thickness: 17.1 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 5.77 kg/m
• Design safety factor: C = 1.25, σs = 5.04 MPa
• Color: Black with green stripes
• Available in coils of 100 meters (for sizes 40 mm to 160 mm)

Engineered to withstand external influences, this pipe offers superior resistance to earthquakes and high soil pressure, ensuring stable performance even in challenging ground conditions. Its flexibility allows for easy installation and reduces the need for fittings. Additionally, the pipe resists UV exposure and chemical corrosion across a pH range of 2 to 12, making it versatile for various applications, including potable water supply, irrigation, and industrial fluid transport.
