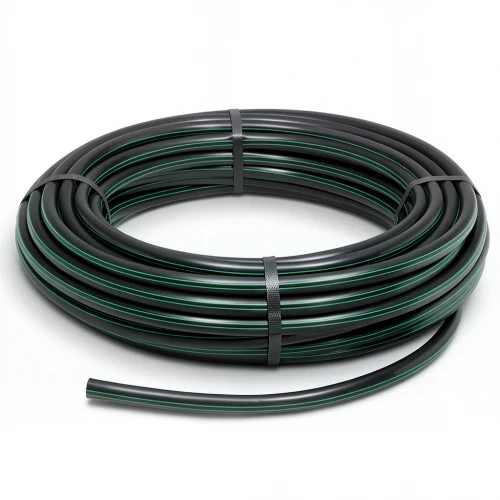

HDPE Plastic Coil Pipe Nominal Pressure 15.7 Bar [PE 63] OD 160 mm SDR 6 Color Black with Green Stripes | Almona Factory

Almona Factory presents HDPE coil pipes engineered for reliable water distribution networks across Kuwait. Manufactured in compliance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (PE 63) to deliver exceptional performance in both urban and industrial settings, from Kuwait City to Al Ahmadi.

These pipes are built to withstand the harsh desert climate, offering superior resistance to UV radiation and extreme temperatures. Their flexibility ensures resilience against ground movement and seismic activity, while their chemical resistance (pH 2–12) makes them suitable for a wide range of fluids. With a design life of over 50 years and minimal maintenance requirements, they provide a cost-effective solution for long-term infrastructure projects.

Key Specifications

• Outer diameter: 160 mm
• Standard dimension ratio (SDR): 6
• Pipe series (S): 2.5
• Material grade: PE 63
• Nominal pressure: 15.7 bar
• Wall thickness: 26.6 mm
• Minimum required strength (MRS): 6.3 MPa
• Design safety factor: C=1.6 (σs = 3.94 MPa)
• Weight: 11 kg/m
• Color: Black with green stripes
• Available in coils of 100, 200, 300, up to 1500 meters (sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Ideal for potable water supply, irrigation systems, and industrial pipelines, these HDPE pipes are a trusted choice for contractors and municipalities throughout Kuwait.
