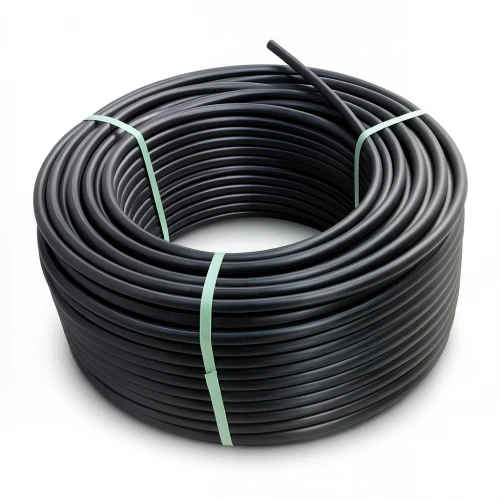

HDPE Plastic Coil Pipe Nominal Pressure 15.6 Bar [PE 100] Outside Diameter 63 mm SDR 9 Color Black | Almona Factory

These HDPE coil pipes, manufactured by Al-Mona Factory in accordance with DIN 8074/8075, are engineered for efficient water transportation in demanding environments. Made from high-density polyethylene (PE 100), they offer exceptional durability and long-term performance, making them a reliable choice for Kuwait's water networks.

Key Features

• Nominal pressure: 15.6 bar
• Outside diameter: 63 mm
• Standard dimension ratio: SDR 9
• Material grade: PE 100
• Wall thickness: 7.1 mm
• Minimum required strength (MRS): 10 MPa
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Weight: 1.27 kg/m
• Color: Black
• Length: Available in coils of 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Applications in Kuwait

These pipes are well-suited for irrigation networks, water supply lines, and other fluid transfer systems across Kuwait, including residential and commercial projects in Kuwait City, Hawalli, and Al Ahmadi. Their resistance to high pressure, UV exposure, and chemical corrosion (pH 2-12) ensures reliable operation in Kuwait's hot climate and harsh soil conditions. Additionally, the flexibility of HDPE and welded joints provides earthquake resistance, and the pipes offer a maintenance-free service life of up to 50 years.
