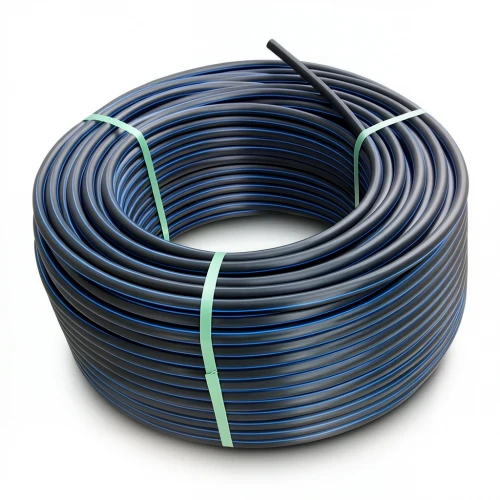

HDPE Plastic Coil Pipe Nominal Pressure 15.6 Bar [PE 100] OD 63 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Al Mona Factory presents its premium HDPE coil pipes, engineered for reliable water transportation across Kuwait's demanding environments. Manufactured to DIN 8074/8075 standards, these pipes leverage high-density polyethylene (PE 100) to deliver exceptional strength, flexibility, and long-term performance.

Key Features & Specifications

• Outer diameter: 63 mm
• Standard Dimension Ratio (SDR): 9
• Pipe Series (S): 4
• Material grade: PE 100
• Nominal pressure: 15.6 bar
• Wall thickness: 7.1 mm
• Minimum Required Strength (MRS): 10 MPa
• Material weight: 1.27 kg/m
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Length: Available in coils of 100, 200, 300 meters (up to 1500 m for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Built for Kuwait's Conditions

With a 50-year maintenance-free lifespan, these pipes withstand high water pressure, making them ideal for municipal and industrial water networks in Kuwait City, Hawalli, and Al Ahmadi. Their UV resistance ensures durability under intense sun, while flexibility provides earthquake resilience—critical for the region. Chemical resistance (pH 2–12) protects against corrosive soils and fluids.

Applications

• Potable water distribution
• Irrigation systems
• Industrial fluid transport
• Underground infrastructure

Choose Al Mona's HDPE coil pipes for dependable, cost-effective solutions that meet Kuwait's building and infrastructure standards.
