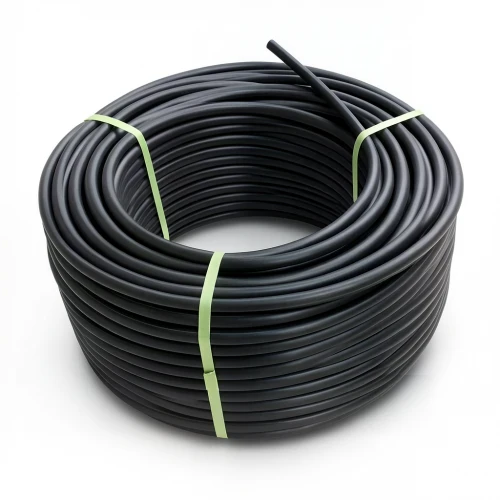

HDPE Plastic Coil Pipe Nominal Pressure 15.6 Bar [PE 100] OD 20 mm SDR 9 Color Black | Almona Factory
(34 Product Views)
High-density polyethylene coil pipes from Al Mona Factory, rated for 15.6 bar with a 20 mm outer diameter, ideal for water networks in Kuwait.
in stock
Product description
These HDPE coil pipes, manufactured by Al Mona Factory to DIN 8074/8075 standards, deliver reliable performance for water transportation networks across Kuwait. Crafted from high-density polyethylene (PE 100), they handle high water pressure with ease, making them suitable for demanding municipal and industrial applications in cities like Kuwait City, Hawalli, and Al Ahmadi.
With a design safety factor of C=1.6 and a minimum required strength of 10 MPa, these pipes offer a maintenance-free service life of 50 years. Their flexibility and resistance to seismic activity ensure durability in Kuwait's varied ground conditions, while UV resistance protects against prolonged sun exposure.
Key Features
- Nominal pressure: 15.6 bar
- Outside diameter: 20 mm
- Standard dimension ratio: SDR 9
- Pipe series (S): 4
- Wall thickness: 2.3 mm
- Weight: 0.134 kg/m
- Color: Black
- Resistant to chemicals with pH range 2–12
- Available in coils from 100 to 1500 meters (for sizes 16–32 mm) and 100-meter coils (for sizes 40–160 mm)
