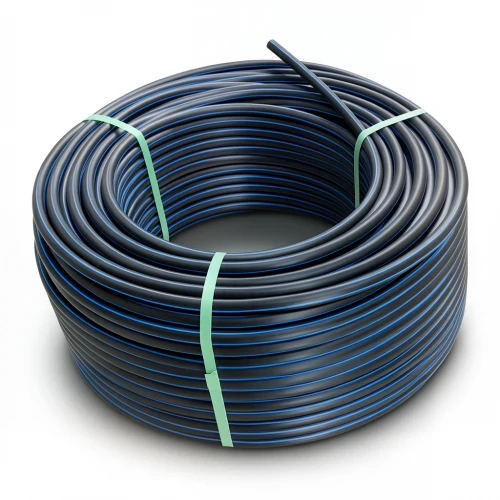

HDPE Plastic Coil Pipe Nominal Pressure 15.6 Bar [PE 100] OD 160 mm SDR 9 Color Black with Blue Stripes | Almona Factory
(30 Product Views)
High-density polyethylene coil pipes from Al Mona Factory, rated PE 100 and 15.6 bar, with a 160 mm outer diameter. Built for durable water transport in Kuwait's demanding environment.
in stock
Product description
Al Mona Factory presents its premium HDPE coil pipes, engineered for reliable water distribution networks across Kuwait. Manufactured to DIN 8074/8075, these pipes are crafted from high-density polyethylene, offering exceptional durability and performance for both potable water and irrigation systems.
Key Features
- High pressure resistance: Rated at 15.6 bar, ideal for high-pressure water mains common in Kuwait's urban infrastructure.
- Corrosion and rust resistant: No degradation from soil chemicals or water quality, ensuring a long service life.
- UV and earthquake resistant: Withstands prolonged sun exposure and seismic activity, crucial for Kuwait's climate and geological conditions.
- Chemical compatibility: Handles a wide pH range (2-12), making it suitable for various industrial applications.
- Maintenance-free: Designed for a 50-year service life without the need for regular upkeep.
Specifications
- Outside Diameter: 160 mm
- Standard Dimension Ratio (SDR): 9
- Pipe Series (S): 4
- Material Grade: PE 100
- Pressure Rating: 15.6 bar
- Wall Thickness: 17.9 mm
- Minimum Required Strength (MRS): 10 MPa
- Weight: 8.04 kg/m
- Design Safety Factor: C=1.6
- Design Stress (σs): 6.25 MPa
- Color: Black with blue stripes
- Available in coils of 100, 200, 300, up to 1500 meters for sizes 16-32 mm; 100-meter coils for sizes 40-160 mm.
Ideal for water supply networks in Kuwait City, Hawalli, and Al Ahmadi, these pipes deliver consistent performance and easy installation, reducing project timelines and costs.
