HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] Outside Diameter 32 mm SDR 11 Color Black | Almona Factory

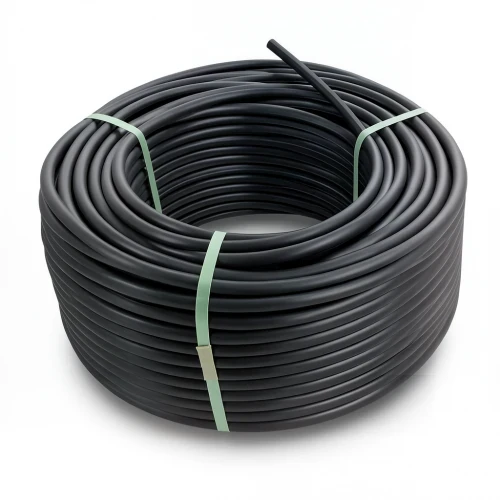

These HDPE coil pipes from Al Mona Factory are engineered for reliable water transportation in demanding environments. Manufactured to DIN 8074/8075 standards, they offer exceptional durability and long-term performance, making them a preferred choice for plumbing, irrigation, and hydraulic systems across Kuwait.

Key Features

• Material: High-density polyethylene (PE100)
• Nominal pressure: 12.5 bar
• Outside diameter: 32 mm
• Standard dimension ratio: SDR 11 (pipe series S=5)
• Wall thickness: 3 mm
• Minimum required strength (MRS): 10 MPa
• Design safety factor: C=1.6 (σs=6.25 MPa)
• Weight: 0.282 kg/m
• Color: Black
• Available in coils of 100, 200, 300, up to 1500 meters (for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Applications in Kuwait

Ideal for water supply networks, irrigation systems, and industrial piping in Kuwait's harsh climate. The pipes resist UV exposure and chemical corrosion (pH 2-12), and their flexibility provides earthquake resistance—a valuable trait for the region.

With a 50-year maintenance-free lifespan, these pipes are a cost-effective and dependable solution for both residential and commercial projects in Kuwait City, Hawalli, and Al Ahmadi.
