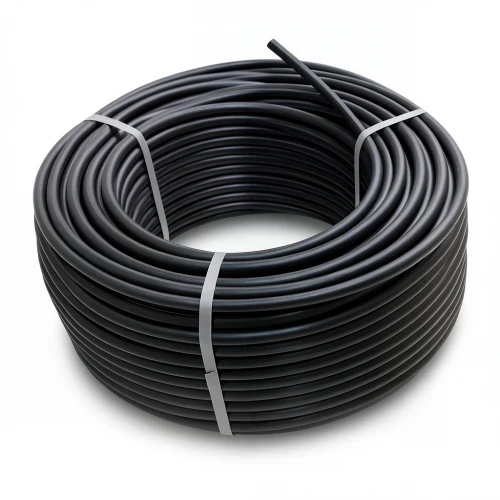

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 140 mm SDR 11 Color Black | Almona Factory

These HDPE coil pipes, manufactured by Almona Factory in accordance with DIN 8074/8075, are engineered for efficient and dependable water transportation. Made from high-density polyethylene (PE 100), they offer exceptional durability and performance, making them a preferred choice for water networks across Kuwait, from Kuwait City to Al Ahmadi.

With a nominal pressure of 12.5 bar and an outer diameter of 140 mm, these pipes are built to handle high-pressure applications with ease. Their SDR 11 rating and 12.7 mm wall thickness ensure robust structural integrity, while the material's minimum required strength of 10 MPa guarantees long-term reliability. Designed for a service life of 50 years with minimal maintenance, they are a cost-effective solution for both municipal and industrial projects.

These pipes provide superior resistance to external factors, including prolonged UV exposure and seismic activity, thanks to their flexibility and strong welded joints. They also resist chemical corrosion across a wide pH range (2 to 12), making them suitable for diverse environments. Available in coils of 100, 200, 300 meters, and up to 1500 meters (for sizes 16 mm to 32 mm), and in 100-meter coils for sizes 40 mm to 160 mm, they offer flexible installation options.

Key Features

• Material: High-density polyethylene (PE 100)
• Nominal pressure: 12.5 bar
• Outside diameter: 140 mm
• SDR 11, Pipe Series S 5
• Wall thickness: 12.7 mm
• Minimum required strength (MRS): 10 MPa
• Design safety factor: C=1.6, σs = 6.25 MPa
• Weight: 5.13 kg/m
• Color: Black
• Length: Coils of 100 m, 200 m, 300 m up to 1500 m (for 16-32 mm); 100 m coils for 40-160 mm
