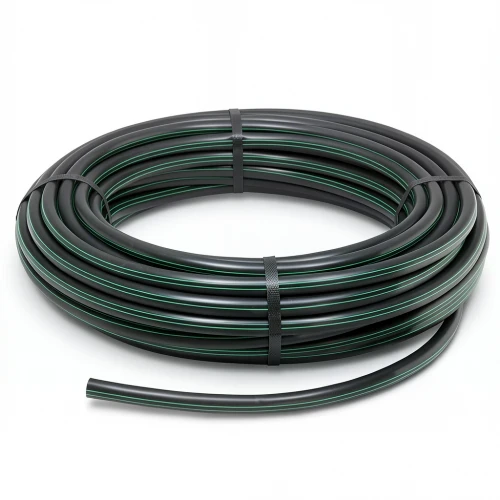

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 63] OD 40 mm SDR 11 Color Black with Green Stripes | Almona Factory

These HDPE (high-density polyethylene) coil pipes from Almona Factory are engineered for reliable water transportation networks, meeting DIN 8074/8075 standards. With a nominal pressure of 10 bar and an outside diameter of 40 mm, they are ideal for demanding applications in Kuwait's infrastructure, from residential supply lines to municipal distribution systems.

Manufactured from PE 63 grade material, these pipes offer exceptional durability and a maintenance-free service life of up to 50 years. Their flexibility allows them to withstand ground movement and seismic activity, while their resistance to UV radiation and chemical corrosion (pH 2-12) ensures long-term performance in Kuwait's harsh climate and soil conditions.

Key Features

• Outside diameter: 40 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 63
• Pressure rating: 10 bar
• Wall thickness: 3.7 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 0.430 kg/m
• Design safety factor: C = 1.25, σs = 5.04 MPa
• Color: Black with green stripes
• Available in coils of 100, 200, and 300 meters (up to 1500 m for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

These pipes are delivered in convenient coils, making handling and installation straightforward across projects in Kuwait City, Hawalli, and Al Ahmadi. Their lightweight nature reduces transportation costs and simplifies on-site deployment.
