HDPE Coil Pipe Working Pressure 10 Bar [PE 100] Outer Diameter 75 mm SDR 17 Color Black | Almona Company

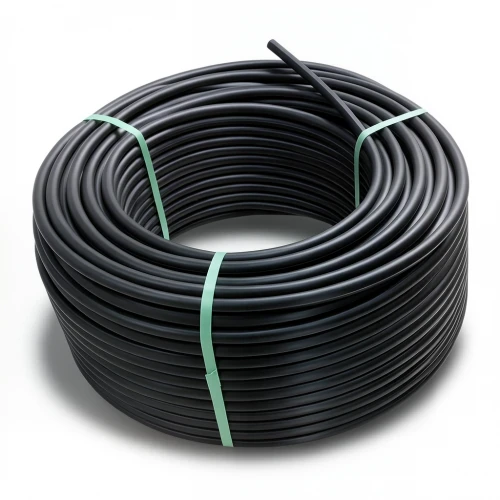

Al-Mona Company presents premium HDPE pipe coils, engineered for reliable water transportation in Kuwait's demanding environment. Manufactured from high-density polyethylene (PE100), these pipes deliver exceptional strength, durability, and resistance to corrosion, ensuring a long-lasting infrastructure solution for residential, commercial, and industrial projects.

Designed to withstand high temperatures and pressures, these coils are perfect for potable water supply, irrigation, and sewage systems. Their flexibility allows for easy handling and installation, reducing labor costs and time, especially in tight spaces or long runs. With a working pressure of 10 bar and a standard dimensional ratio (SDR 17), they meet the rigorous standards required for modern construction in Kuwait.

Key Features

• Outer diameter: 75 mm
• Wall thickness: 4.5 mm
• Standard dimensional ratio (SDR): 17
• Working pressure: 10 bar
• Pipe series (S): 8
• Material grade: PE100 (high-density polyethylene)
• Color: Black
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor (C): 1.25
• Manufactured according to ISO 4427-2

Applications in Kuwait

These HDPE coils are widely used in Kuwait's infrastructure, including water distribution networks in Kuwait City, Hawalli, and Al Ahmadi. They are also ideal for agricultural irrigation projects, industrial cooling systems, and temporary water supply lines. The corrosion resistance makes them suitable for the saline soil and harsh climatic conditions prevalent in the region.

Available Lengths

Coils are available in lengths of 100, 200, and 300 meters, and can be supplied up to 1500 meters for sizes from 16 mm to 32 mm. For sizes from 40 mm to 160 mm, standard 100-meter coils are provided. This flexibility ensures efficient transportation and installation, minimizing joints and potential leak points.
