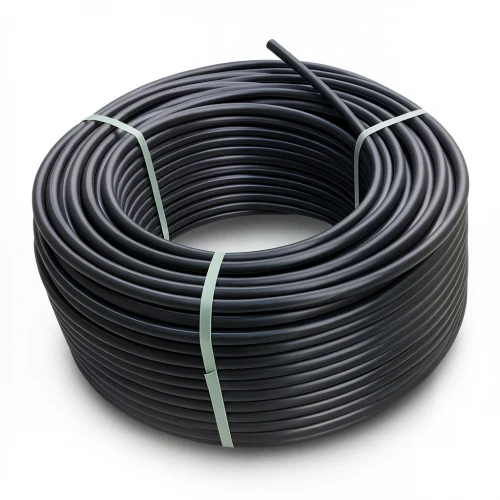

HDPE Coil Pipe PN 12.5 Bar [PE 80] OD 20 mm SDR 11 Color Black | Almona Factory
(2 Product Views)
Product description
Al-Mona Factory presents high-density polyethylene (HDPE) coil pipes, engineered for reliable water transportation in demanding conditions. These pipes are manufactured in accordance with ISO 4427-2, ensuring consistent quality and performance. With a PE80 material grade and a design safety factor of C=1.25, they offer robust strength and durability.
Built to withstand high temperatures and pressures, these coils resist corrosion and maintain system integrity even under challenging environments. The black color provides UV resistance, making them suitable for outdoor installations across Kuwait's harsh climate.
Key Features
- Outside diameter: 20 mm
- Standard dimension ratio: SDR 11
- Material grade: PE 80
- Pressure rating: 12.5 bar
- Wall thickness: 2 mm
- Minimum required strength (MRS): 8 MPa
- Design stress (σs): 6.4 MPa
- Design safety factor: C=1.25
- Color: Black
- Available in coil lengths: 100 m, 200 m, 300 m up to 1500 m (sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm
These pipes are widely used in water supply networks, irrigation systems, and industrial applications across Kuwait, including projects in Kuwait City, Hawalli, and Al Ahmadi. Their flexibility and long coil lengths reduce the need for joints, speeding up installation and minimizing leakage risks.
