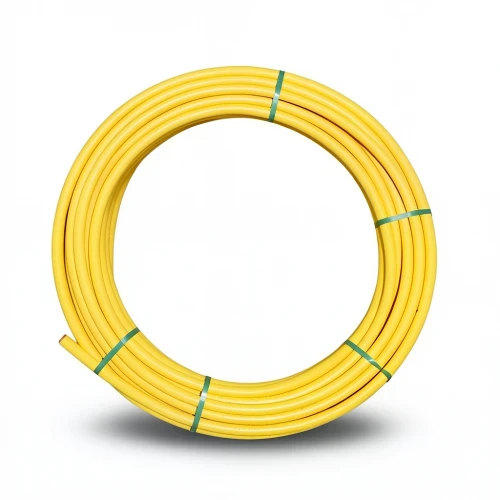

HDPE Coil Pipe Nominal Pressure 4.8 Bar [PE 80] Outside Diameter 20 mm Thickness 2.3 mm Color Yellow | Almona Factory

This HDPE coil pipe from Almona Factory is engineered for reliable performance in gas supply networks, meeting the ISO 4437 standard. Manufactured from high-density polyethylene (PE 80), it offers exceptional strength, durability, and resistance to high temperatures, pressure, and corrosion—making it a dependable choice for Kuwait's demanding climate and infrastructure projects.

The pipe features a nominal pressure of 4.8 bar (SDR 17.6) and an outside diameter of 20 mm with a wall thickness of 2.3 mm. Its lightweight design (0.13 kg per meter) simplifies handling and installation, reducing labor costs and time on site.

Key Features

• Material grade: PE 80
• Pressure rating: 4.8 bar
• Standard dimension ratio: SDR 17.6
• Outside diameter: 20 mm; thickness: 2.3 mm
• Minimum required strength (MRS): 10 MPa
• Design stress: 5 MPa; safety factor: C=2
• Yellow color for high visibility
• Available in coils from 100 to 1500 meters (sizes 16–32 mm) and 100-meter coils (sizes 40–160 mm)

Ideal for gas distribution networks in Kuwait City, Hawalli, and Al Ahmadi, this pipe withstands harsh weather conditions and provides long-term reliability. Choose Almona Factory for quality and performance.
