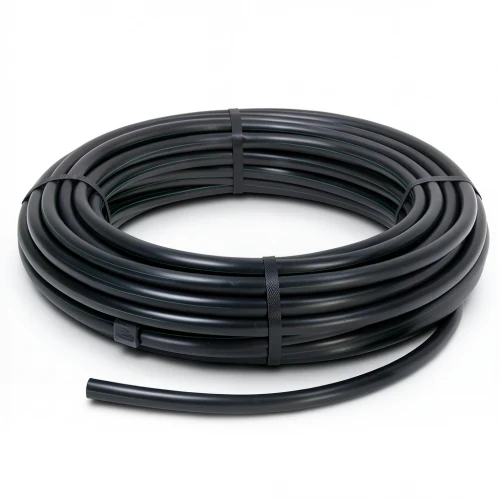

HDPE Coil Pipe Nominal Pressure 16 Bar [PE 80] OD 20 mm SDR 9 Color Black | Almona Factory

This HDPE coil pipe from Al Mona Factory is engineered for reliable irrigation and water conveyance in Kuwait's demanding climate. Manufactured from high-density polyethylene (PE 80), it offers exceptional flexibility, impact resistance, and long-term durability—ideal for underground and above-ground installations across Kuwait City, Hawalli, and Al Ahmadi.

With a nominal pressure of 16 bar and an SDR 9 rating, this pipe handles high water pressure with ease, making it suitable for municipal water networks, agricultural irrigation, and industrial fluid transfer. Its smooth inner surface reduces friction, ensuring efficient flow and lower pumping costs. The pipe is UV-stabilized and resistant to corrosion, chemicals, and abrasion, providing a maintenance-free service life of up to 50 years.

Key Specifications

• Outside Diameter: 20 mm
• Wall Thickness: 2.3 mm
• Material Weight: 0.133 kg/m
• Standard Dimension Ratio: SDR 9
• Nominal Pressure: 16 bar
• Pipe Series (S): 4
• Material Grade: PE 80
• Color: Black
• Minimum Required Strength (MRS): 8 MPa
• Design Stress (σs): 6.4 MPa
• Design Safety Factor: C=1.25
• Manufactured according to: DIN 8074/8075

Available in coil lengths from 100 to 1500 meters for sizes 16–32 mm, and 100-meter coils for sizes 40–160 mm. This pipe is a cost-effective, high-performance solution for Kuwait's water infrastructure projects.
