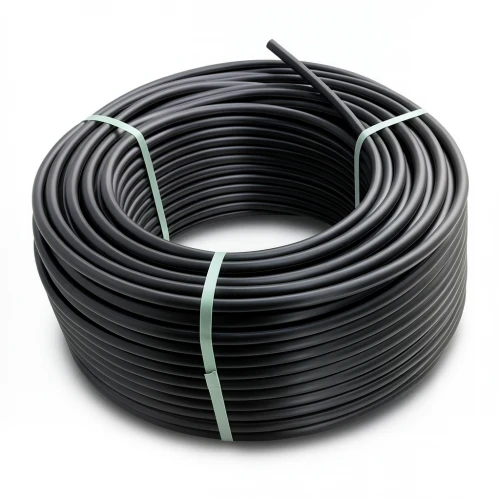

HDPE Coil Pipe Nominal Pressure 12.5 Bar [PE 80] Outside Diameter 50 mm SDR 11 Color Black | Almona Factory
(29 Product Views)
High-density polyethylene (HDPE) pipe coils from Al-Mona Factory, rated for 12.5 bar with a 50 mm outer diameter, ideal for water supply networks across Kuwait.
in stock
Product description
These HDPE pipe coils from Al-Mona Factory are engineered for reliable water transportation in Kuwait's demanding infrastructure projects. Manufactured from high-density polyethylene (PE 80) and compliant with ISO 4427-2, they offer exceptional durability and long-term performance.
Designed to withstand ground pressures, high temperatures, and corrosive environments, these pipes are a trusted choice for municipal water lines, irrigation systems, and industrial applications across Kuwait City, Hawalli, and Al Ahmadi. Their flexibility and coil form simplify handling and installation, reducing labor time and costs.
Key Features
- Material: High-density polyethylene (PE 80)
- Nominal pressure: 12.5 bar
- Outside diameter: 50 mm
- Standard dimension ratio: SDR 11
- Wall thickness: 4.6 mm
- Minimum required strength (MRS): 8 MPa
- Design stress (σs): 6.4 MPa
- Design safety factor: C = 1.25
- Color: Black
- Available in coils: 100 to 1500 meters (for sizes 16 mm to 32 mm)
- 100-meter coils for sizes 40 mm to 160 mm
