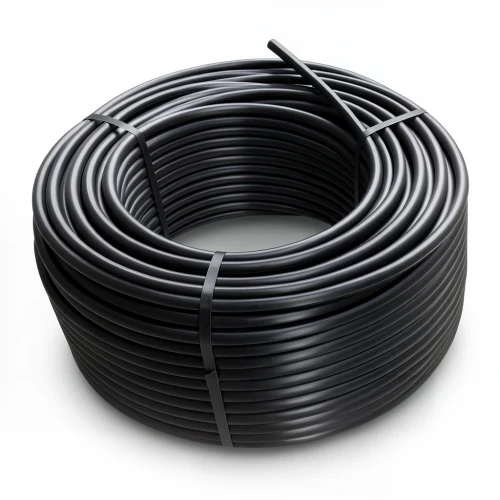

HDPE Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 160 mm SDR 13.6 Color Black | Almona Company

These HDPE coil pipes, manufactured by Al-Mona Company, are engineered for reliable water transportation networks. Made from high-density polyethylene (PE100), they offer exceptional strength, durability, and resistance to corrosion and rust, ensuring a long service life even in demanding conditions.

With a nominal pressure of 12.5 bar and an SDR 13.6 rating, these pipes are suitable for a wide range of water supply applications. The 160 mm outer diameter and 11.8 mm wall thickness provide robust performance, while the black color offers UV resistance for outdoor installations.

Key Features

• Material: PE100 high-density polyethylene
• Pressure rating: 12.5 bar (PN 12.5)
• Standard Dimension Ratio: SDR 13.6
• Pipe Series (S): 6.3
• Minimum Required Strength (MRS): 10 MPa
• Design Stress (σs): 8 MPa
• Design Safety Factor: C=1.25
• Manufactured according to ISO 4427-2
• Available in coils of 100, 200, and 300 meters (up to 1500 meters for sizes 16-32 mm)
• 100-meter coils for sizes 40-160 mm

Ideal for use in Kuwait's water infrastructure, these pipes are perfect for potable water distribution, irrigation systems, and industrial applications. Their flexibility and ease of installation make them a cost-effective choice for projects across Kuwait City, Hawalli, and Al Ahmadi, where reliable water supply is essential.
