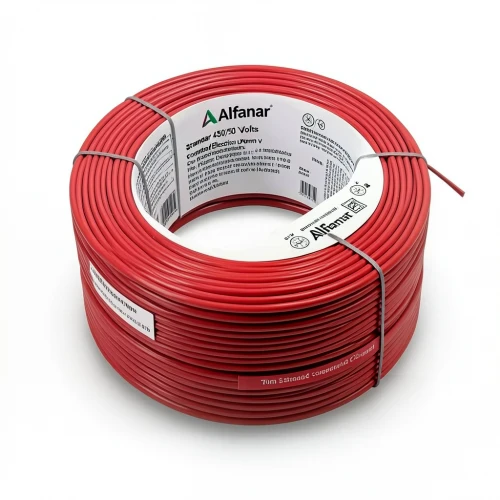

Stranded Electric Wire 70mm 450/750 Volts, Copper Conductor 2.22mm Diameter, Heat Resistant PVC Insulated | Alfanar

This Alfanar stranded copper wire (CU/PVC) is engineered for dependable performance in Kuwait's demanding electrical installations. With a 70 mm cross-section and 450/750 V rating, it delivers stable power transmission for residential, commercial, and industrial projects across Kuwait City, Hawalli, and Al Ahmadi.

The heat-resistant PVC insulation (rated 90°C) provides excellent protection against electric leakage, shocks, and abrasion, while also shielding the conductor from moisture and harmful UV rays—essential for Kuwait's hot climate and high humidity coastal areas. The stranded conductor (19 wires, 2.22 mm diameter) offers flexibility and durability, making it easy to route through conduits and cable trays.

Designed for fixed internal installations, this wire is ideal for control panels, machinery, lighting circuits, and power distribution systems in buildings and facilities throughout Kuwait. It complies with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards, ensuring quality and safety.

• Copper conductor with stranded shape for flexibility
• Heat-resistant PVC insulation (90°C) for enhanced safety
• Voltage rating: 450/750 V
• Conductor cross-section: 70 mm, 19 wires, 2.22 mm diameter
• Max DC resistance at 20°C: 0.268 ohm/km
• Nominal insulation thickness: 1.4 mm; overall diameter: 12.5 mm
• Weight: 666 kg/km; available in 100-yard coils (custom lengths on request)
• Red color for easy identification
