Stranded Electric Wire 450/750 Volts, Copper Conductor, PVC Insulation, 400mm2 Size, 100 Yards Length | Alfanar
(29 Product Views)
Product description

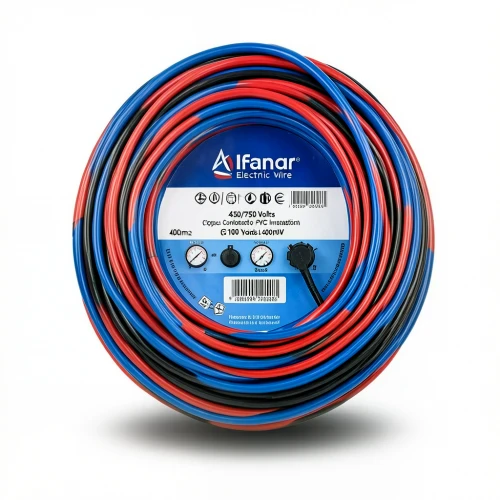

This Alfanar stranded copper wire delivers dependable power transmission for fixed electrical installations across Kuwait. Manufactured to BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards, it combines a 400 mm² cross-section with a robust PVC insulation rated for 70°C, ensuring safe operation in demanding conditions.
The PVC insulation forms a tight protective layer around the conductor, preventing current leakage, resisting shocks, abrasion, moisture, and harmful UV rays — ideal for Kuwait's harsh climate. Its stranded construction offers flexibility for routing in control panels, machinery, and lighting systems.
Key Features
- Copper conductor, stranded (61 wires, 3.15 mm diameter)
- PVC insulation, 70°C rated, nominal thickness 2.6 mm
- Voltage rating: 450/750V
- Max DC resistance at 20°C: 0.047 ohm/km
- Overall diameter: 28.3 mm; weight: 3745 kg/km
- Length: 100 yards per coil (other lengths on request)
- Brown phase core; meets international standards
Perfect for fixed internal wiring in commercial and residential projects across Kuwait City, Hawalli, and Al Ahmadi, this cable supports control boards, power networks, and high-temperature equipment installations.
