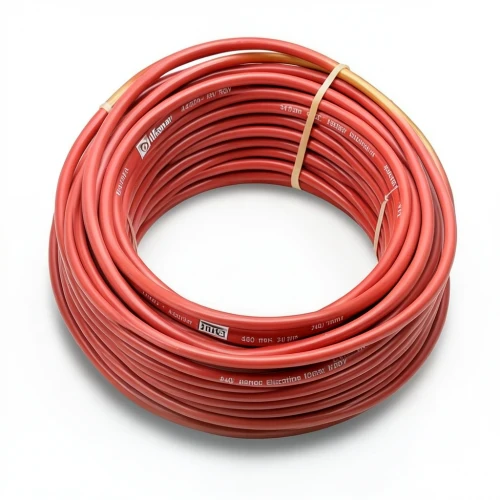

Stranded Electric Wire 240 mm2 450/750V, Copper Conductor 3.12mm Diameter, Heat Resistant PVC Insulation | Alfanar
(32 Product Views)
High-quality stranded copper electric wire, 240 mm², rated 450/750V, with heat-resistant PVC insulation. Manufactured by Alfanar to international standards, ideal for fixed installations in Kuwait.
in stock
Product description
This stranded copper wire from Alfanar is engineered for reliable performance in demanding electrical installations. With a 240 mm² cross-section and 450/750V rating, it delivers excellent conductivity and durability, making it a trusted choice for projects across Kuwait, from residential complexes in Hawalli to industrial facilities in Al Ahmadi.
The heat-resistant PVC insulation (rated up to 90°C) provides robust protection against electrical leakage, shocks, abrasion, moisture, and UV damage, ensuring long-term safety and performance even in Kuwait's harsh climate. Designed for fixed internal installations, this wire is suitable for control panels, machinery, lighting networks, and power systems.
Key Features
- Stranded copper conductor (37 wires, 3.12 mm diameter)
- Heat-resistant PVC insulation (90°C)
- Voltage rating: 450/750V
- Cross-sectional area: 240 mm²
- Max DC resistance at 20°C: 0.0754 ohm/km
- Nominal insulation thickness: 2.2 mm
- Approx. overall diameter: 22.5 mm
- Weight: 2320 kg/km
- Available in 100-yard coils (custom lengths on request)
- Color: Red
- Meets BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards
