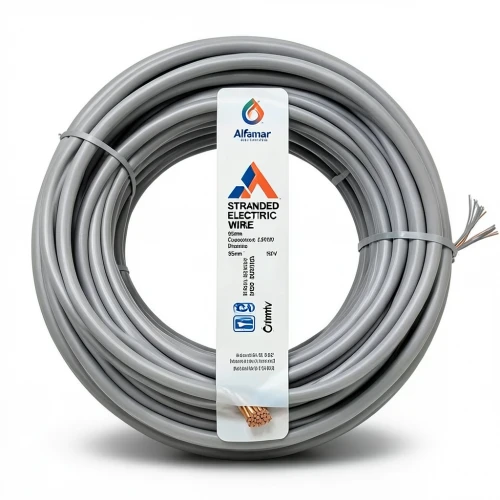

Alfanar Stranded Electric Wire 95mm 450/750V, Copper Conductor 2.66mm Diameter, Heat Resistant PVC Insulated
(4 Product Views)
Product description
This Alfanar stranded copper wire delivers reliable performance for demanding electrical installations. With a 95 mm² cross-section and 450/750V rating, it meets the latest BS and IEC standards, ensuring safety and efficiency in Kuwait's building and industrial projects.
The heat-resistant PVC insulation (rated 90°C) provides excellent protection against current leakage, shocks, abrasion, and moisture. It also shields the conductor from harmful UV rays, making it suitable for both indoor and covered outdoor applications common in Kuwait's climate.
Designed for fixed internal installations, this wire is perfect for control panels, machinery, lighting networks, and power systems in commercial, residential, and industrial settings across Kuwait City, Hawalli, and Al Ahmadi. Its stranded construction offers flexibility, while the 19-wire design ensures optimal conductivity.
Key Features
- Copper conductor, stranded (19 wires), 2.66 mm diameter
- Cross-sectional area: 95 mm²
- Voltage rating: 450/750V
- Heat-resistant PVC insulation (90°C)
- Max DC resistance at 20°C: 0.193 ohm/km
- Nominal insulation thickness: 1.6 mm
- Approx. overall diameter: 14.5 mm
- Weight: 919 kg/km
- Length: 100 yards per coil (other lengths on request)
- Color: Gray
- Standards: BS EN 50525-2-31, IEC 60227-3, SASO-GSO-IEC 60227-3
