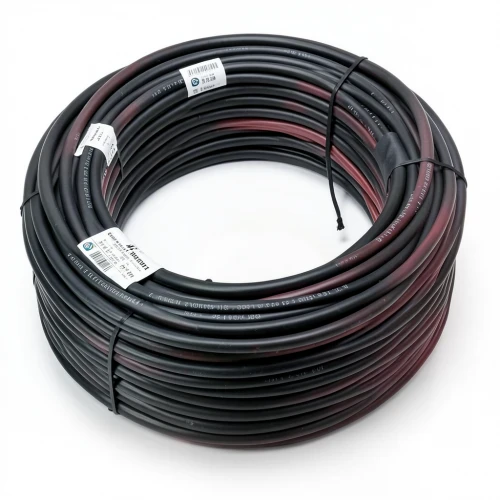

Alfanar 240 mm2 Electric Wire 450/750V, Stranded Copper Conductor PVC Insulation, 100 yards Length

This Alfanar electric wire features a stranded copper conductor with a cross-sectional area of 240 mm², insulated with high-grade polyvinyl chloride (PVC) rated for 70°C. The PVC insulation provides excellent protection against current leakage, physical abrasion, and moisture, while also shielding the cable from harmful UV rays—ideal for Kuwait's harsh climate.

Designed for fixed internal installations, this wire is suitable for power circuits, lighting systems, building wiring, and internal connections of appliances and equipment. Its robust construction ensures reliable performance and long-lasting durability, making it a trusted choice for residential, commercial, and industrial projects in Kuwait City, Hawalli, and Al Ahmadi.

Key Features

• Stranded copper conductor for flexibility and conductivity
• PVC insulation (70°C) for safety and durability
• Rated voltage: 450/750V
• Conductor size: 240 mm² (37 wires, 3.12 mm diameter)
• Max DC resistance at 20°C: 0.0754 ohm/km
• Nominal insulation thickness: 2.2 mm; overall diameter: 22.5 mm
• Weight: 2333 kg/km
• Length: 100 yards (300 feet) per coil; other lengths available on request
• Color: Orange
• Complies with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards
