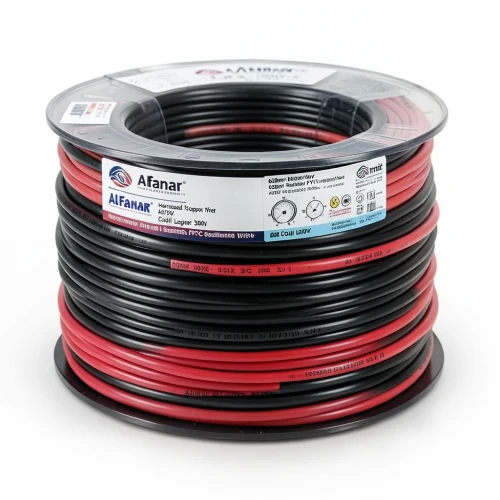

630mm Stranded Copper Wire, Heat Resistant PVC Insulated, 450/750V, Coil Length 300ft | Alfanar

This 630mm² stranded copper wire from Alfanar is engineered for demanding electrical environments, delivering reliable performance and long-lasting durability. The heat-resistant PVC insulation (rated up to 90°C) provides a robust barrier against electrical leakage, abrasion, corrosion, moisture, and UV radiation, ensuring safe and stable operation even under harsh conditions.

Compliant with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards, this cable is suitable for fixed internal installations in control panels, machinery, lighting networks, and power systems. Its stranded conductor design offers flexibility and ease of handling, while the 630mm² cross-section supports high current loads, making it a dependable choice for large-scale projects across Kuwait, from commercial complexes in Kuwait City to industrial facilities in Al Ahmadi.

Key Features

• Conductor: Stranded copper (61 wires, 3.81 mm diameter)
• Insulation: Heat-resistant PVC (90°C) with excellent protective properties
• Voltage rating: 450/750V
• Cross-sectional area: 630 mm²
• Maximum DC resistance at 20°C: 0.0283 ohm/km
• Nominal insulation thickness: 2.8 mm; overall diameter: 35.7 mm
• Weight: 6098 kg/km
• Coil length: 300 ft
• Color: White

Whether for new installations or upgrades, this cable delivers the performance and safety required for Kuwait's demanding electrical infrastructure.
