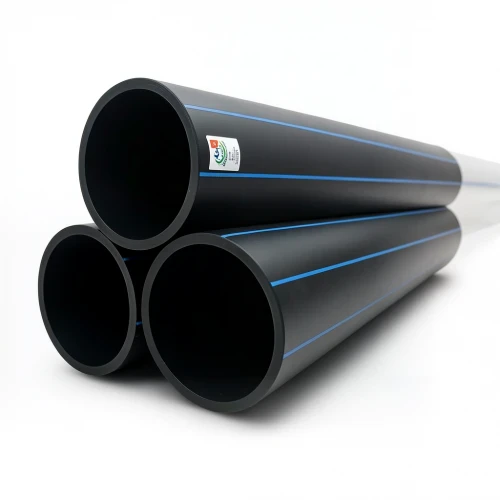

Neproplast HDPE Pipes PE 100 Pressure 16 Bar Outside Diameter 315 mm Thickness 28.6 mm Color Black

Neproplast HDPE Pipes PE 100 Pressure 16 Bar Outside Diameter 315 mm Thickness 28.6 mm Color Black

(8 Product Views)

Neproplast HDPE PE100 pipes, 315 mm OD and 16 bar pressure, deliver reliable performance for potable water and agricultural supply in Bahrain. Built from high-density polyethylene, they resist heat, UV, bacteria, and require no painting.
in stock
 Call Now

Product description

Overview

Neproplast HDPE pipes PE100 are engineered for demanding water conveyance applications, from municipal potable water networks to agricultural irrigation systems across Bahrain. With an outside diameter of 315 mm and a pressure rating of 16 bar, these pipes deliver robust performance in both urban and rural settings.

Key Features

  • PE100 grade high-density polyethylene for exceptional strength and durability
  • 16 bar pressure rating, suitable for high-pressure water transport
  • 315 mm outside diameter with 28.6 mm wall thickness (SDR 11)
  • Lightweight yet strong, simplifying handling and installation
  • Resistant to bacteria, insects, heat, and UV radiation
  • No painting required, reducing maintenance
  • Easy to form and customize according to project needs
  • Secure and leak-proof connections via electric welding
  • Standard 12-meter lengths, with custom lengths available on request
  • Black color standard, other colors available on request

Applications in Bahrain

Ideal for potable water distribution in residential and commercial developments in Manama, Muharraq, and Riffa, as well as for agricultural irrigation in the northern governorate. The pipes' resistance to harsh sunlight and high temperatures makes them well-suited for Bahrain's climate.

Technical Specifications

  • Material: PE100
  • Outside Diameter: 315 mm
  • Thickness: 28.6 mm
  • Pressure: 16 Bar
  • Material Weight: 25.683 kg/meter
  • Standard Dimensions Ratio (SDR): 11
  • Sigma: 8
  • Minimum Required Strength (MRS): 10
  • Series (S): 5
