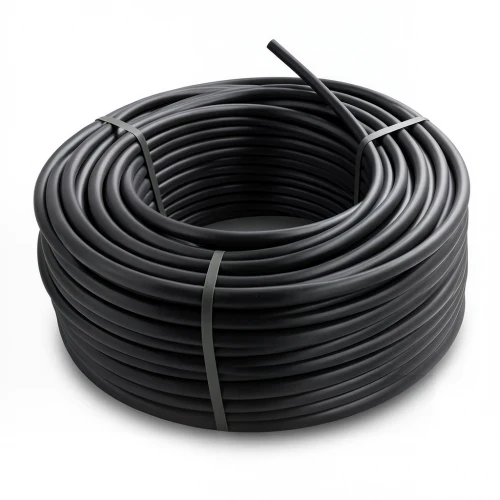

HDPE Polyethylene Plastic Coil Pipe Working Pressure 10 Bar [PE 100] Outer Diameter 63 mm SDR 17 Color Black | Almona Company

This HDPE (High-Density Polyethylene) coil pipe, manufactured by Al-Mona Company, is a reliable solution for water transportation networks across Bahrain. With a working pressure of 10 bar (SDR 17) and an outer diameter of 63 mm, it is designed to withstand the demands of both potable water and irrigation systems, from Manama to Riffa.

Engineered from PE100 grade material, this pipe offers exceptional strength, durability, and resistance to corrosion and chemical attack. Its lightweight nature simplifies handling and installation, reducing labor and equipment costs—especially valuable in the tight spaces of urban Muharraq or the expansive developments in the Southern Governorate.

Key Features

• Outer diameter: 63 mm
• Wall thickness: 3.8 mm
• Standard dimension ratio: SDR 17
• Working pressure: 10 bar (PN 10)
• Pipe series (S): 8
• Material grade: PE100 (MRS 10 MPa, design stress 8 MPa, safety factor C=1.25)
• Color: Black
• Available in coils of 100, 200, 300 meters, and up to 1500 meters (for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm
• Manufactured according to ISO 4427-2

Applications in Bahrain

Ideal for underground water mains, irrigation networks, and industrial fluid transfer. The pipe's flexibility and long coil lengths reduce joints, minimizing leak risks—a key advantage in Bahrain's sandy soils and high groundwater levels.
