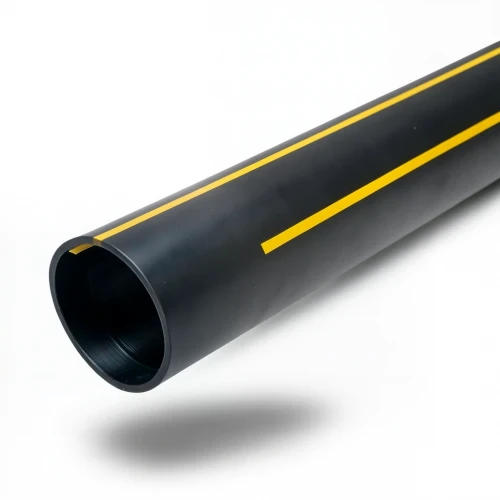

HDPE Plastic Pipe PN 4.8 Bar [PE 80] OD 560 mm Thickness 31.9 mm Color Black with Yellow Stripes | Almona Factory
(30 Product Views)
High-density polyethylene (HDPE) pipe, PE80 grade, with a 4.8 bar pressure rating (SDR 17.6), 560 mm outer diameter, and 31.9 mm wall thickness. Manufactured by Al-Mona Factory, ideal for gas supply networks in Bahrain.
Product description
This HDPE pipe from Al-Mona Factory is engineered for reliable gas distribution networks, meeting the ISO 4437 standard. Crafted from high-density polyethylene (PE80), it offers exceptional strength, durability, and resistance to high temperatures, pressure, and corrosion—making it a dependable choice for Bahrain's demanding infrastructure projects.
With a 560 mm outer diameter and a standard dimension ratio of SDR 17.6, this pipe delivers a pressure rating of 4.8 bar. The 31.9 mm wall thickness ensures structural integrity, while the material's minimum required strength (MRS) of 8 MPa and design stress of 4 MPa (with a safety factor of C=2) provide long-term performance.
Key Features
- Material grade: PE80 (high-density polyethylene)
- Pressure rating: 4.8 bar (SDR 17.6)
- Outer diameter: 560 mm; wall thickness: 31.9 mm
- Weight: 53.10 kg/m
- Length: 12 meters (custom lengths available on request)
- Color: black with yellow stripes for easy identification
- Manufactured to ISO 4437 standard
Ideal for gas supply networks across Bahrain—from Manama's urban developments to industrial zones in Hidd and Sitra—this pipe offers a corrosion-free, low-maintenance solution that withstands harsh coastal conditions and temperature variations.
