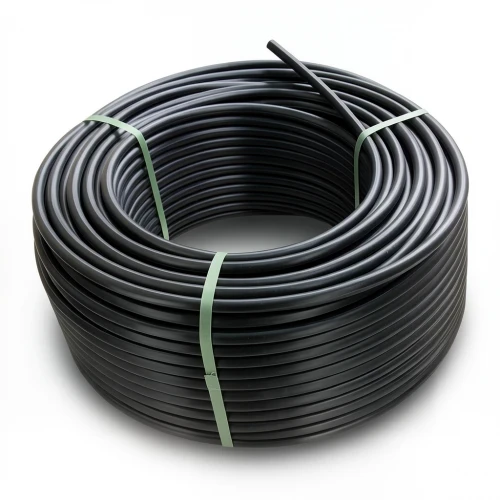

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 100] OD 110 mm SDR 17 Color Black | Almona Company
(9 Product Views)
Product description
This HDPE coil pipe from Al-Mona Company delivers dependable performance for water transportation networks across Bahrain. Manufactured from high-density polyethylene (PE100), it offers exceptional strength, durability, and resistance to corrosion, ensuring a long service life even in the Kingdom's hot, humid climate and saline soil conditions.
Engineered with a standard dimensional ratio (SDR 17) and a nominal pressure rating of 10 bar, this pipe is suitable for a wide range of potable water and irrigation applications. Its black color provides UV protection, while the material's flexibility and impact resistance make it ideal for both buried and above-ground installations, from Manama's urban projects to Riffa's residential developments.
Key Features
- Outside diameter: 110 mm
- Wall thickness: 6.6 mm
- Standard dimensional ratio: SDR 17
- Nominal pressure: 10 bar
- Pipe series (S): 8
- Material grade: PE100
- Minimum required strength (MRS): 10 MPa
- Design stress (ฯs): 8 MPa
- Design safety factor: C=1.25
- Available in coils of 100 meters (from 40 mm to 160 mm)
- Manufactured according to ISO 4427-2
Whether for municipal water supply, agricultural irrigation, or industrial piping, Al-Mona's HDPE coil pipes offer reliable, long-lasting solutions tailored to Bahrain's infrastructure needs.
