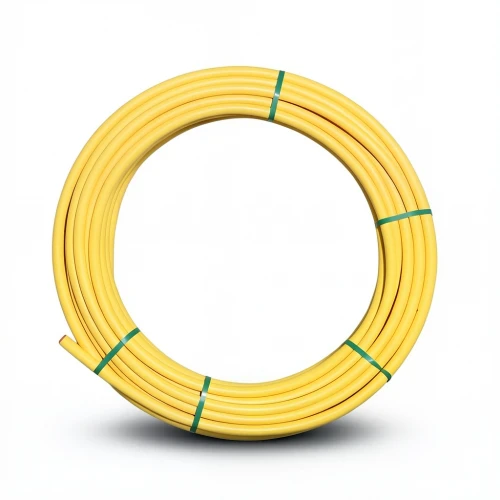

HDPE Coil Pipe Nominal Pressure 4.8 Bar [PE 80] OD 63 mm Thickness 3.6 mm Color Yellow | Almona Factory
(6 Product Views)
Product description
This HDPE coil pipe from Al-Mona Factory is engineered for reliable gas and fuel supply networks, meeting the demands of Bahrain's infrastructure projects. Manufactured from high-density polyethylene (PE 80), it offers excellent strength, durability, and resistance to corrosion, ensuring long-term performance even in challenging environments.
With an outside diameter of 63 mm and a nominal pressure of 4.8 bar (SDR 17.6), this pipe is suitable for a variety of distribution applications. Its yellow color complies with standard identification for gas lines, enhancing safety and ease of maintenance on site.
Key Features
- Outside diameter: 63 mm
- Standard dimension ratio: SDR 17.6
- Material grade: PE 80
- Nominal pressure: 4.8 bar
- Wall thickness: 3.6 mm
- Weight: 0.69 kg/m
- Minimum required strength (MRS): 10 MPa
- Design stress: 5 MPa
- Design safety factor: C=2
- Color: yellow
- Available in coils: 100 m, 200 m, 300 m up to 1500 m (sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm
Ideal for gas distribution networks in Bahrain, from Manama to Riffa, this pipe is manufactured in accordance with ISO 4437, ensuring quality and compliance with international standards.
