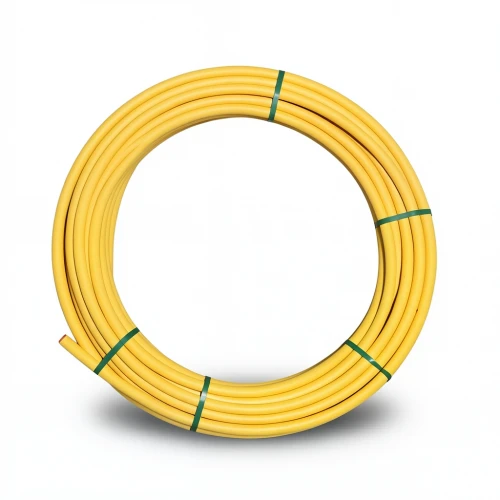

HDPE Coil Pipe Nominal Pressure 4.8 Bar [PE 80] OD 32 mm Thickness 2.3 mm Color Yellow | Almona Factory
(8 Product Views)
Product description
These HDPE coil pipes, manufactured by Almona Factory in accordance with ISO 4437, are engineered for reliable gas distribution systems. The high-density polyethylene construction delivers outstanding strength, durability, and resistance to corrosion, making them a trusted choice for infrastructure projects across Bahrain’s urban and industrial zones.
With a nominal pressure of 4.8 bar and a standard dimension ratio of SDR 17.6, these pipes handle demanding conditions while maintaining performance. The yellow color ensures easy identification for gas applications, and the coil format simplifies handling and installation, reducing labor time on site.
Key Features
- Material grade: PE 80 (MRS 10 MPa)
- Outside diameter: 32 mm; wall thickness: 2.3 mm
- Nominal pressure: 4.8 bar (SDR 17.6)
- Design stress: 5 MPa with safety factor C=2
- Weight: 0.22 kg/m
- Available in coils of 100, 200, 300 meters up to 1500 meters (16 mm to 32 mm sizes)
- 100-meter coils available for sizes 40 mm to 160 mm
- Yellow color for gas line identification
Ideal for gas supply networks in Bahrain, these pipes suit both residential developments and commercial installations, offering long service life with minimal maintenance.
